Toyota SUPRA — ANTENNA

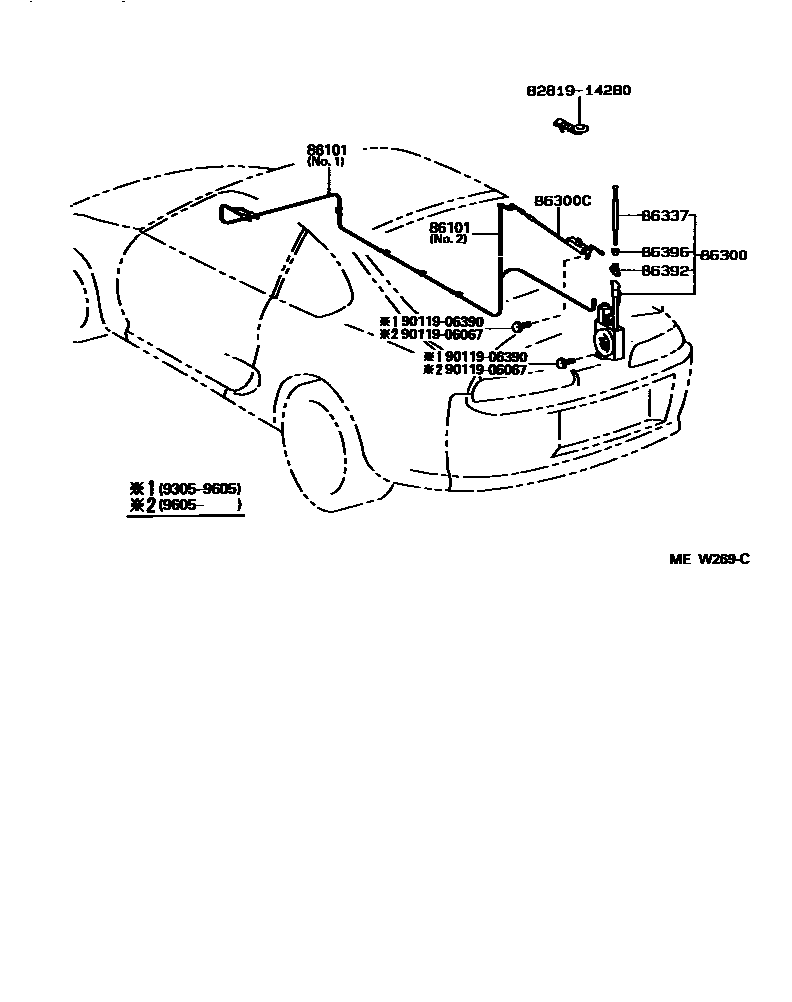

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-14440i199305-199605

main86101-14441i199605

main86101-14450i199305-199605

main86101-14451i199605

main86101-14540i199305-199605

86300ANTENNA ASSY, W/HOLDER

main86300-14410i199305-199510

main86300-14411i199510-199908

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-14420i199305-199908

86337ROD & PIPE, SEALED W/CABLE

main86337-14410i199305-199510

main86337-14411i199510-199908

86392ORNAMENT, ANTENNA

main86392-14100i199305-199908

86396NUT, ANTENNA

main86396-30040i199305-199908

8281914280GROMMET, WIRING HARNESS

main82819-14280

9011906067

main90119-06067

9011906390

main90119-06390

9 parts on this diagram · 1 diagram in section

ANTENNA for Toyota SUPRA

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota SUPRA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2, ROD & PIPE, SEALED W/CABLE, ORNAMENT, ANTENNA.
