Toyota SUPRA — ANTENNA

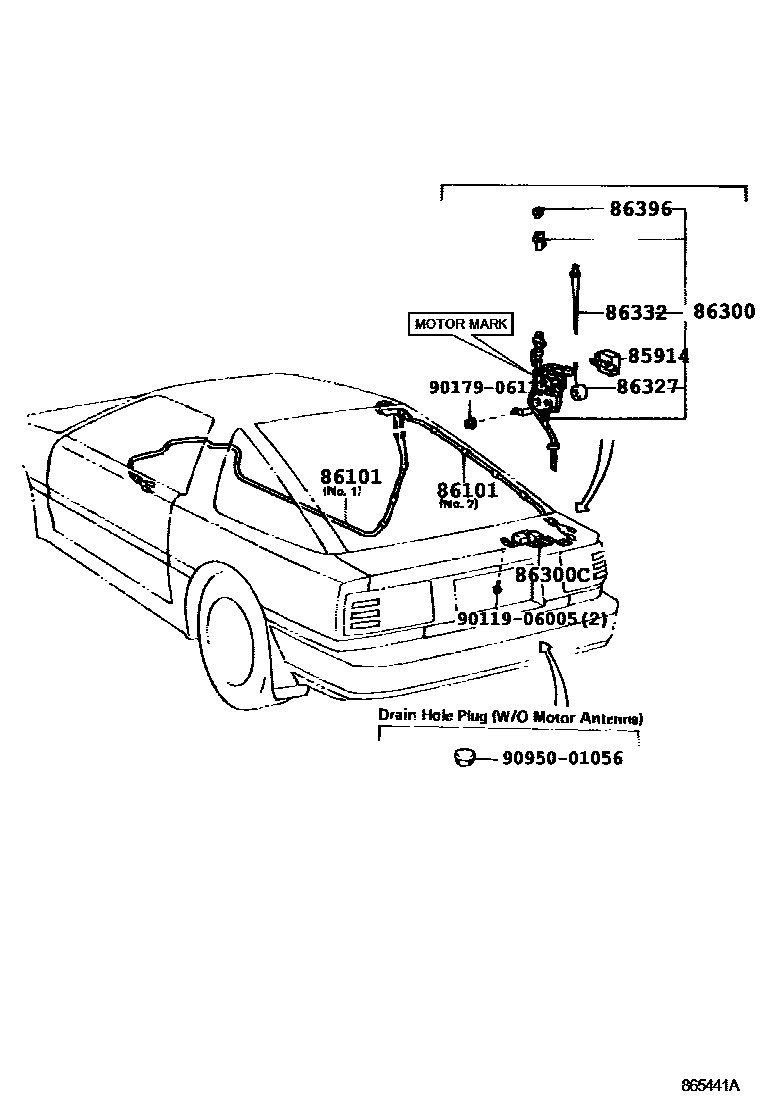

Parts diagram

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020i198808-199305

86101CORD SUB-ASSY, ANTENNA

main86101-14460i199108-199305

main86101-14470i198808-199305

main86101-14480i198908-199008

main86101-14481i199008-199108

main86101-14510i199008-199108

main86101-14520i198908-199008

main86101-14521i199008-199108

86300ANTENNA ASSY, W/HOLDER

main86300-14360i198808-198809

main86300-14361i198809-199108

main86300-14370i198808-198809

main86300-14371i198809-199108

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-14341i199108-199305

main86300-14390i199108-199305

86327CABLE, W/ANTENNA DRUM

main86327-22210i198808-198811

main86327-22211i198811-199305

86332ROD, ANTENNA

main86336-14350i198808-199108

main86336-14370i198808-199108

main86337-14372i198808-199108

main86337-2B040i198808-199108

86396NUT, ANTENNA

main86396-14041i198808-199108

main86396-14070i198808-199108

9011906005

main90119-06005

9017906115

main90179-06115

9095001056

main90950-01056

10 parts on this diagram · 1 diagram in section

ANTENNA for Toyota SUPRA

This section contains 10 genuine Toyota parts for the ANTENNA system of the Toyota SUPRA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2, CABLE, W/ANTENNA DRUM.
