Toyota SUPRA — ALTERNATOR

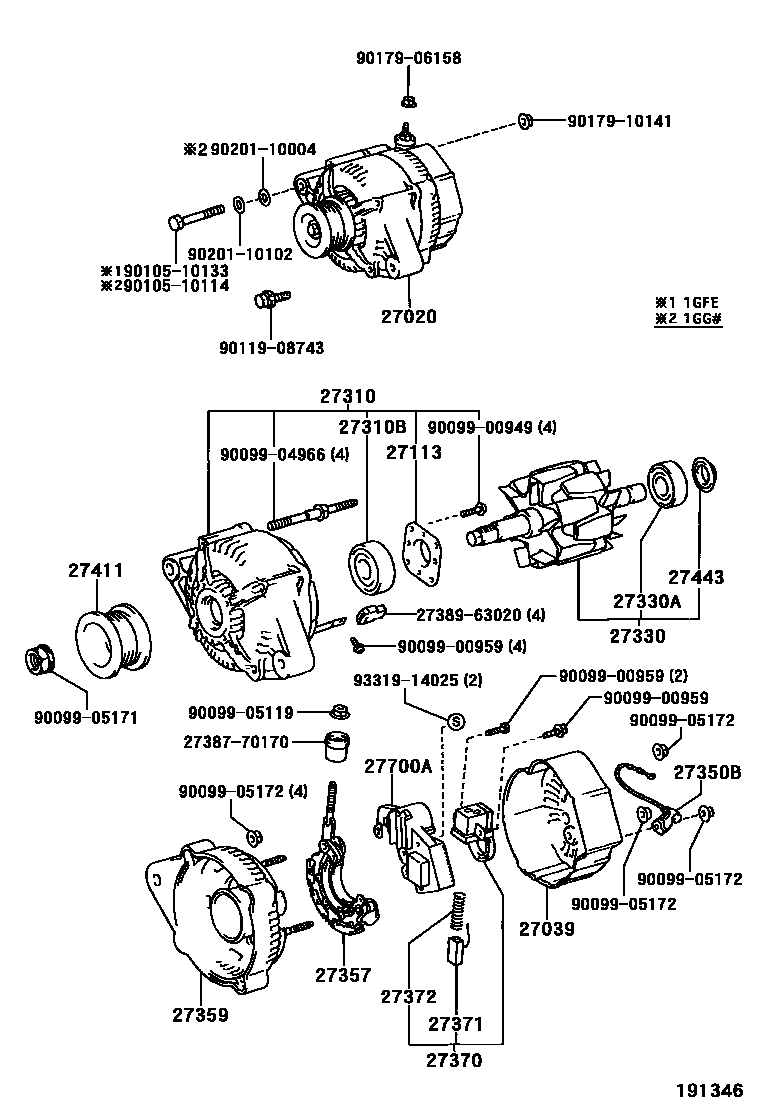

Parts diagram

27020ALTERNATOR ASSY

main27060-42021i198808-199008

main27060-46010i199008-199305

main27060-70270i198808-199305

main27060-70290i198808-199201

main27060-70291i199201-199305

27039COVER, ALTERNATOR REAR END

main27039-15170i199109-199305

main27039-42010i198808-199305

main27039-42020i198808-199008

main27039-72010i198808-199109

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i198808-199305

main27312-70200i198808-199305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-42010i198808-199305

main27310-42040i198808-199008

main27310-46080i199008-199305

main27310-70100i198808-199305

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i198808-199305

main90099-10178i198808-199305

main90099-10192i199008-199305

27330ROTOR ASSY, ALTERNATOR

main27330-42010i198808-199012

main27330-42020i198808-199008

main27330-46080i199008-199305

main27330-72101i198808-199305

main27330-76030i199012-199305

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i198808-199305

main90099-10194i199008-199305

27350BCONDENSER, ALTERNATOR

main90099-52027i199008-199305

main90099-52093i198808-199008

main90099-52096i198808-198901

main90099-52100i198808-199305

main90099-52101i198901-199305

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-42010i198808-199112

main27357-42020i198808-199008

main27357-46080i199008-199112

main27357-46150i199112-199305

main27357-50040i199112-199305

main27357-63020i198808-199305

27359FRAME, ALTERNATOR RECTIFIER END

main27359-42010i198808-199305

main27359-42020i198808-199008

main27359-46080i199008-199305

main27359-70260i198808-199305

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i199207-199305

main27370-42010i198808-199305

main27370-63021i198808-199102

main27370-70300i199102-199207

main27370-75060i199008-199305

27371BRUSH, ALTERNATOR

main27371-63020×2i198808-199105

main27371-70300×2i199105-199305

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i198808-199305

27411PULLEY, ALTERNATOR

main27411-42010i198808-199305

main27411-42020i198808-198902

main27411-46080i199008-199305

main27411-70200i198808-199305

main27411-74070i198902-199008

27443COVER, ALTERNATOR BEARING

main27443-63020i198808-199305

27700AREGULATOR ASSY, GENERATOR

main27700-16010i199001-199109

main27700-46030i199109-199305

main27700-50010i199201-199305

main27700-63021i198808-198812

main27700-70030i198812-199001

main27700-74010i199008-199109

main27700-76020i199109-199305

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510114

main90105-10114

9010510133

main90105-10133

9011908743

main90119-08743

9017906158

main90179-06158

9017910141

main90179-10141

9020110004

main90201-10004

9020110102

main90201-10102

9331914025

main93319-14025

32 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota SUPRA

This section contains 49 genuine Toyota parts for the ALTERNATOR system of the Toyota SUPRA. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, PLATE, BEARING RETAINER, ALTERNATOR, FRAME ASSY, DRIVE END, ALTERNATOR.
