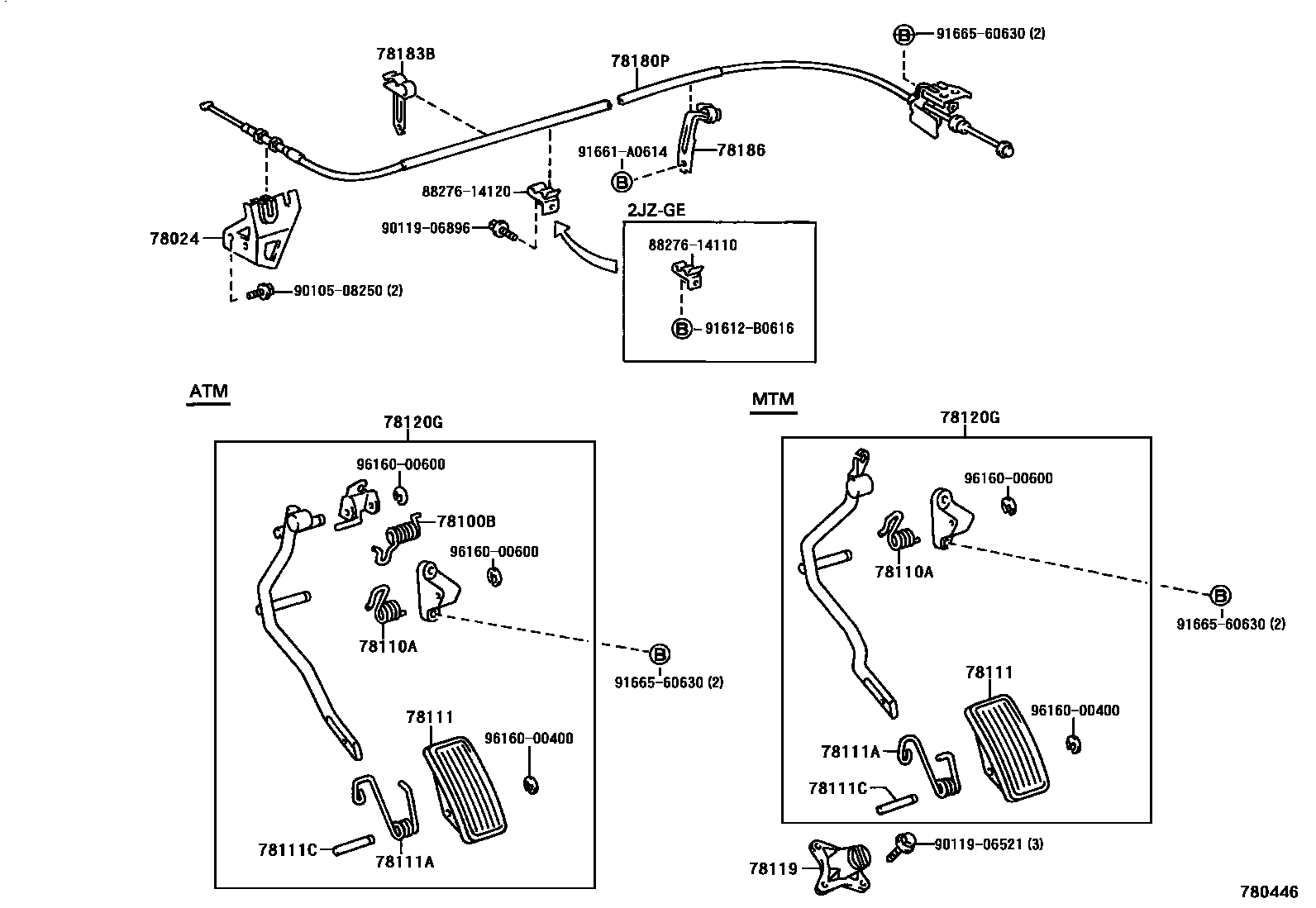

Toyota SUPRA — ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30160iJZA80..TWT199305-199709

main78024-30170iJZA80..TWT199709

78100BSPRING (FOR ACCELERATOR LINK)

main90508-29022iJZA80..4FC199305

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23076iJZA80199908

78111PEDAL, ACCELERATOR

main78111-12100iJZA80199305-199908

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iJZA80..4FC199305

main90508-23121iJZA80..MTM199305

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZA80199908

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-24010iJZA80..MTM199305

78120GROD ASSY, ACCELERATOR PEDAL

main78120-14450iJZA80..4FC199305

main78120-14460iJZA80..MTM199305

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1B080iJZA80..TWT199305-199709

main78180-1B100iJZA80..TWC199305-199908

main78180-1B110iJZA80..TWT199709

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-14030iJZA80..TWT199305

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22100iJZA80..TWT199305

8827614110

main88276-14110

8827614120

main88276-14120

9010508250

main90105-08250

9011906521

main90119-06521

9011906896

main90119-06896

91612B0616

main91612-B0616

91661A0614

main91661-A0614

9166560630

main91665-60630

9616000400

main96160-00400

9616000600

main96160-00600

21 parts on this diagram · 1 diagram in section
