Toyota SUPRA — ABS & VSC
82125CWIRE, TRANSMISSION
88263ARELAY, SKID CONTROL
main88263-14110iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
MOTOR RELAY
main88263-14120iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
SOLENOID
89411SENSOR, SPEED
main89542-14010iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
FR-RH
main89543-14010iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
FR-LH
89540COMPUTER ASSY, SKID CONTROL
main89541-14020iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,MA70..WIB..(GTL,GTT)198808-199305
89544SENSOR, SKID CONTROL
89544ARING, O (FOR SKID CONTROL SENSOR)
89548ROTOR, SKID CONTROL SENSOR
89548AKEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR)
89549BRACKET, SKID CONTROL COMPUTER
main88267-14110iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
main88268-14110iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
main88269-14110iGA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,JZA70,MA70..WIB..(GTL,GTT,GTTR)198808-199305
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9010508116
main90105-08116
9018905019
main90189-05019
9165140612
main91651-40612
9165140820
main91651-40820
9165160820
main91651-60820
9331915008
main93319-15008
9356755016
main93567-55016

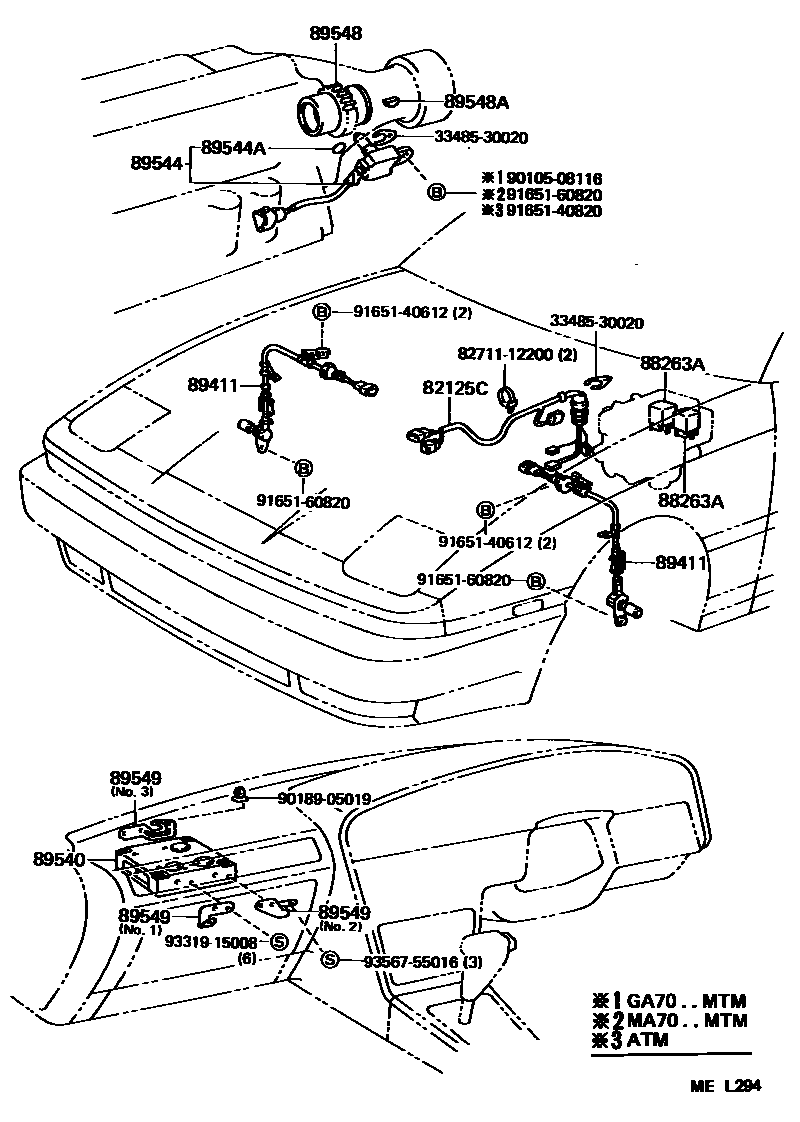

18 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota SUPRA
This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota SUPRA. Key components include: WIRE, TRANSMISSION, RELAY, SKID CONTROL, SENSOR, SPEED, COMPUTER ASSY, SKID CONTROL, SENSOR, SKID CONTROL.
