Toyota SUPRA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE,040
DK. BROWNISH GRAY M.,1A1
SILVER METALLIC,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN M.M.,6P3
DEEP TEAL METALLIC,752
SUPER WHITE,040
DK. BROWNISH GRAY M.,1A1
SILVER METALLIC,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN M.M.,6P3
DEEP TEAL METALLIC,752
SUPER WHITE,040
DK. BROWNISH GRAY M.,1A1
SILVER METALLIC,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN M.M.,6P3
DEEP TEAL METALLIC,752
85301INLET SUB-ASSY, WASHER
SWEDEN,FINLAND OR NORWAY SPEC
NORWAY SPEC
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
SWEDEN,FINLAND OR NORWAY SPEC
NORWAY SPEC
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100
L=1450
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1000
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1000
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=180)
85383HOLDER, FRONT WASHER NOZZLE
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533714120CASE, LEVEL WARNING SWITCH
main85337-14120
8533814120HOSE, BREATHER
main85338-14120
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
8538814540CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-14540
9011906451
main90119-06451
9011908636
main90119-08636

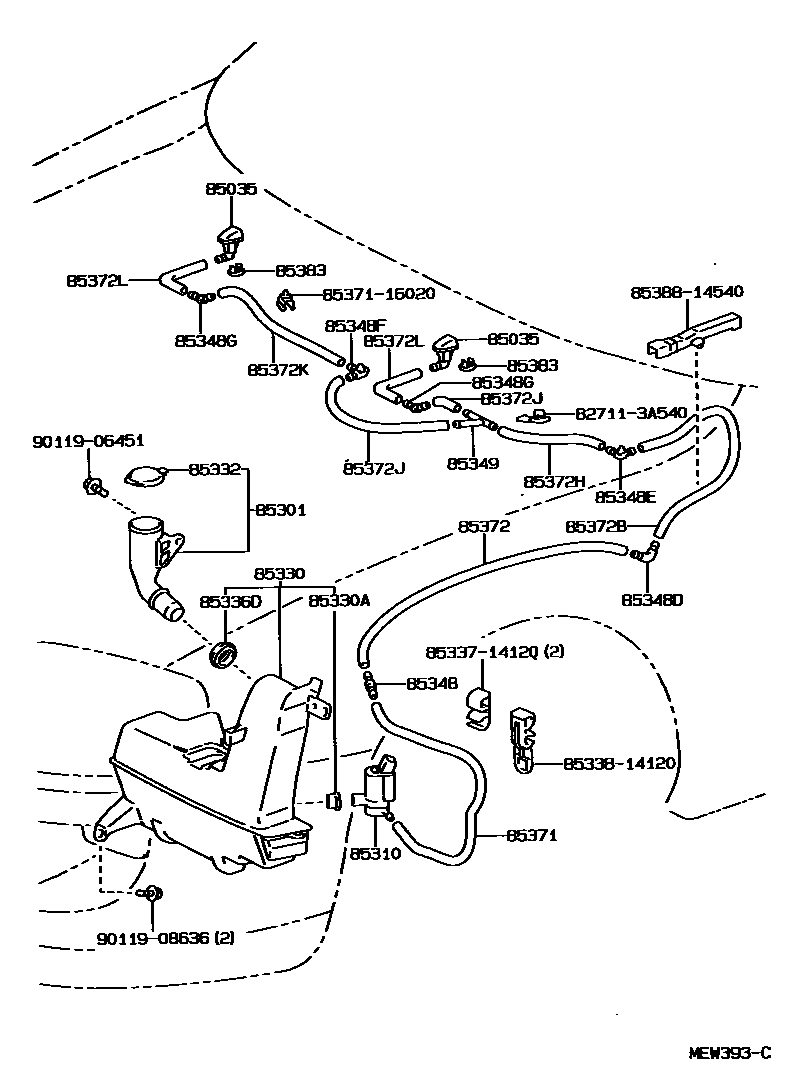

28 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota SUPRA
This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SUPRA. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
