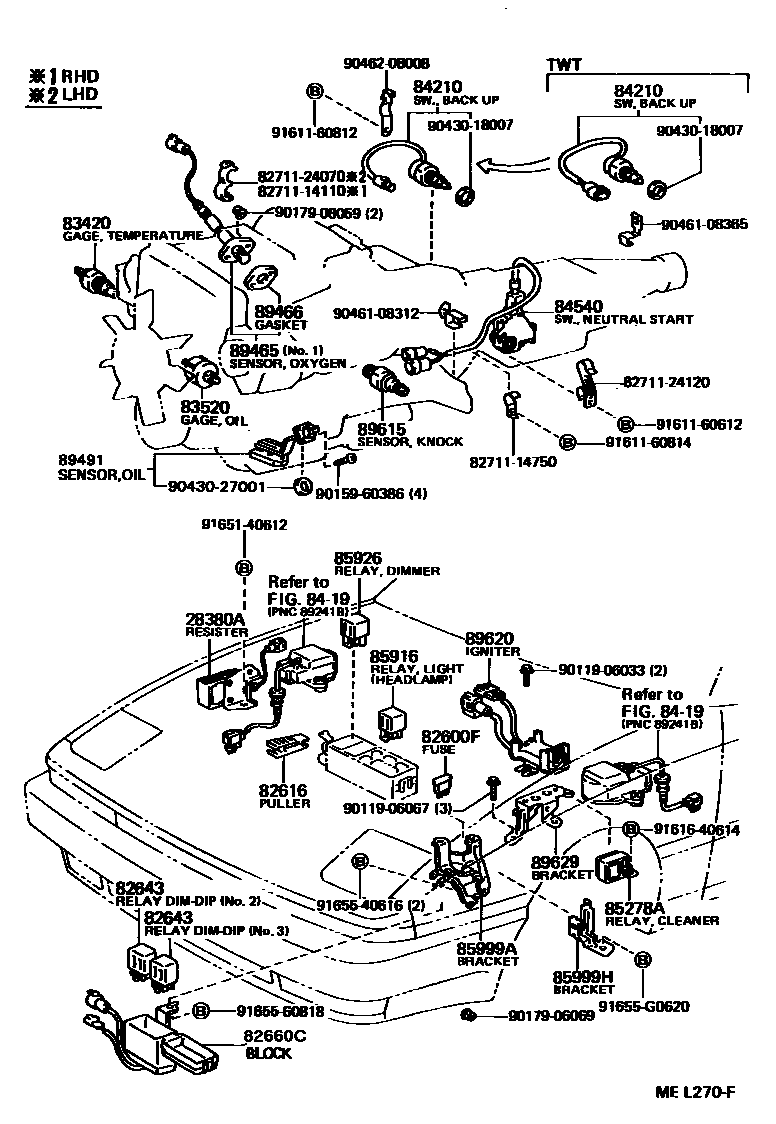

Toyota SUPRA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28380ARESISTER, FUEL PUMP

main23080-70010i7MG#..MA70198808-199305

82600FFUSE, FUSE BLOCK

main90982-07011iMA70198808-199305

30A,GREEN

main90982-09001iMA70..LHD..(C,EUR)198808-199305

5A

main90982-09002×3iMA70198808-199305

10A

main90982-09003×5iMA70198808-199305

15A

main90982-09004iMA70198808-199305

20A,YELLOW

main90982-09005×4iMA70198808-199305

7.5A

82616PULLER, FUSE

main82616-12020iMA70198808-199305

82643RELAY, DIM-DIP LAMP

main82643-12010iMA70..RHD..(C,EUR)198808-198908

NO.1

main90987-02002iMA70..C198908-199305

NO.4,MARUKO

main90987-02004iMA70..C198908-199305

NO.4,NIPPONDENSO

main90987-02006iMA70..RHD..(C,EUR)198808-198908

NO.3

main90987-04002iMA70..RHD..(C,EUR)198808-198908

NO.2

82660CBLOCK ASSY, RELAY

main82660-14230iMA70..RHD..(C,EUR)198808-198908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iMA70198808-199305

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iMA70198808-199305

NIPPONDENSO

sub83520-35030

main83520-55011iMA70198808-199305

YAZAKI

8419

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iMA70..5F..TWC198808-199305

main84210-35030iMA70..5F..TWT198808-199305

84540SWITCH ASSY, NEUTRAL START

main84540-30240iMA70..4FC198808-199202

main84540-30241iMA70..4FC199202-199305

85278ARELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14060iMA70..C,EUR198808-199305

85916RELAY, LIGHT CONTROL

main90987-02002iMA70198808-199305

MARUKO,TAIL LAMP

main90987-02004iMA70198808-199305

*ND,TAIL LAMP

main90987-02006iMA70198808-199305

HEADLAMP

85926RELAY, HEADLAMP DIMMER

main85926-30020iMA70..LHD..C199008-199305

*FRG

85999ABRACKET, RELAY, NO.2

main85999-24020iMA70198808-199305

85999HBRACKET, RELAY

main85999-24030iMA70198808-199305

89465SENSOR, OXYGEN

main89465-19145iMA70..TWT198808-198810

NO.1

main89465-19315iMA70..TWC..ARL198808-198908

NO.1

main89465-19316iMA70..TWC..C198908-199305

NO.1

main89465-19345iMA70..TWT198810-199008

NO.1

main89465-19455iMA70..TWT199008-199305

NO.1

89466GASKET, OXYGEN SENSOR

main89466-20020iMA70..ARL,C198810-198908

NO.1

main89466-30010iMA70..ARL,C198808-198810

NO.1

89491SENSOR, ENGINE OIL LEVEL

main89491-14060iMA70..ARL,C199008-199305

89615SENSOR, KNOCK CONTROL

main89615-30020iMA70..TWC198808-199108

main89615-33010×2iMA70..TWC199108-199208

MATUSITA

main89615-33020iMA70..TWC199108-199305

NIPPONDENSO

sub89615-32030

89620IGNITER ASSY

main89620-14430iMA70..TWC198808-199305

main89620-14440iMA70..TWT198808-199305

89629BRACKET, IGNITER ASSY

main89629-14050iMA70198808-199305

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906033

main90119-06033

9011906067

main90119-06067

9015960386

main90159-60386

9017906069

main90179-06069

9017908059

main90179-08059

9043018007

main90430-18007

9043027001

main90430-27001

9046108312

main90461-08312

9046108365

main90461-08365

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9161640614

main91616-40614

9165140612

main91651-40612

9165540616

main91655-40616

9165560818

main91655-60818

91655G0620

main91655-G0620

43 parts on this diagram · 4 diagrams in section
