Toyota SUPRA — STARTER

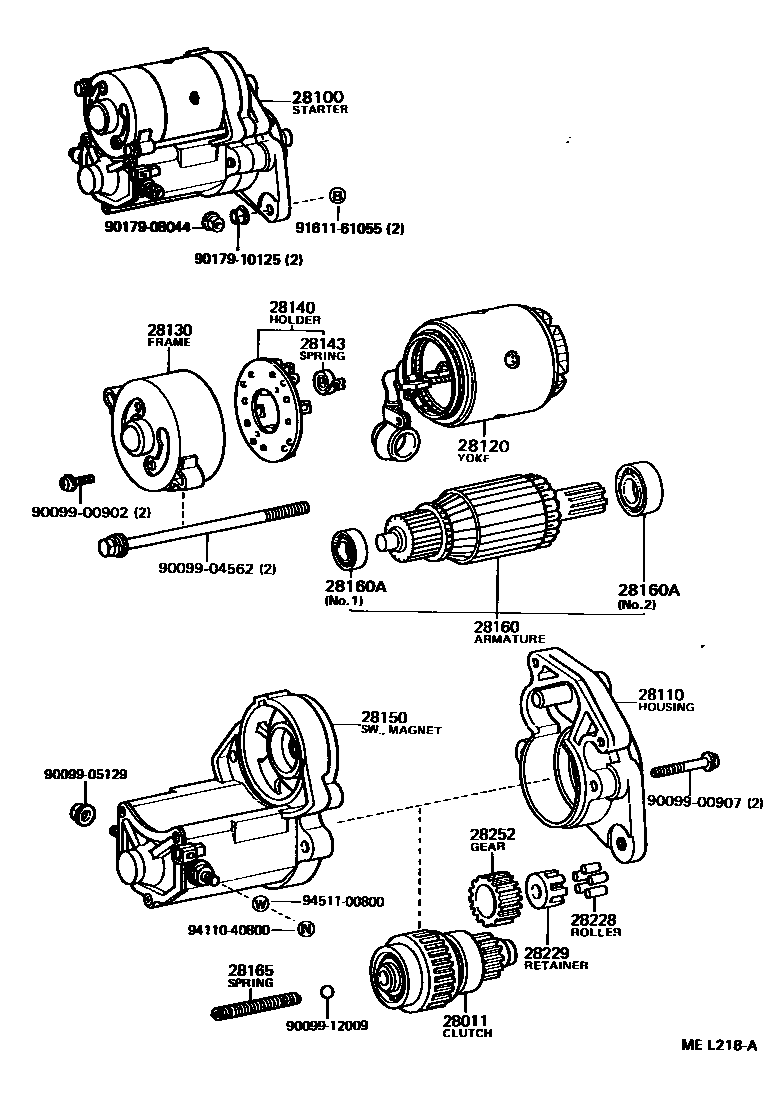

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i199008-199305
main28011-76070i199008-199305
COLD SPEC
28100STARTER ASSY
main28100-41060i198808-199004
12V 1.0KW
main28100-42040i199004-199008
12V 1.0KW
sub28100-46100
main28100-45050i198808-199008
12V 1.4KW,COLD SPEC
main28100-46090i199008-199305
12V 1.4KW,COLD SPEC
sub28100-46100
28110HOUSING ASSY, STARTER DRIVE
main28110-41060i198808-199008
main28110-45050i198808-199008
COLD SPEC
main28110-46090i199008-199305
COLD SPEC
28120YOKE ASSY, STARTER
main28120-15090i198808-199008
COLD SPEC
main28120-26071i198808-199008
main28120-74070i199008-199305
COLD SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15020i198808-199008
main28130-15090i198808-199008
COLD SPEC
main28130-46090i199008-199305
COLD SPEC
28140HOLDER ASSY, STARTER BRUSH
main28140-15090i198808-199008
COLD SPEC
main28140-26070i198808-199008
main28140-76070i199008-199305
COLD SPEC
28143SPRING, STARTER BRUSH
main90099-17112×4i198808-199008
28150SWITCH ASSY, MAGNET STARTER
main28150-41060i198808-199008
main28150-42040i199110-199305
main28150-45050i198808-199008
COLD SPEC
main28150-46090i199008-199106
COLD SPEC
main28150-46120i199106-199305
COLD SPEC
28160ARMATURE ASSY, STARTER
main28160-15090i198808-198908
COLD SPEC
main28160-15091i198908-199008
COLD SPEC
main28160-26070i198808-198908
main28160-26071i198908-199008
main28160-74070i199008-199305
COLD SPEC
28160ABEARING, STARTER ARMATURE
main28253-45020i198808-199008
NO.1
main90099-10113i198808-199008
NO.2
main90099-10143i198808-199008
COLD SPEC,NO.2
main90099-10144i198808-199008
COLD SPEC,NO.1
main90099-10196i199008-199305
COLD SPEC,NO.2
main90099-10197i199008-199305
COLD SPEC,NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-26040i198808-199008
main28165-76070i199008-199305
COLD SPEC
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040×5i198808-199008
28229RETAINER, STARTER IDLE GEAR
main28229-26040i198808-199008
main28229-74070i199008-199305
COLD SPEC
28252GEAR, STARTER IDLE
main28254-45020i198808-199008
main28254-74070i199008-199305
COLD SPEC
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9017908044
main90179-08044
9017910125
main90179-10125
9161161055
main91611-61055
9411040800
main94110-40800
9451100800
main94511-00800

24 parts on this diagram · 2 diagrams in section
