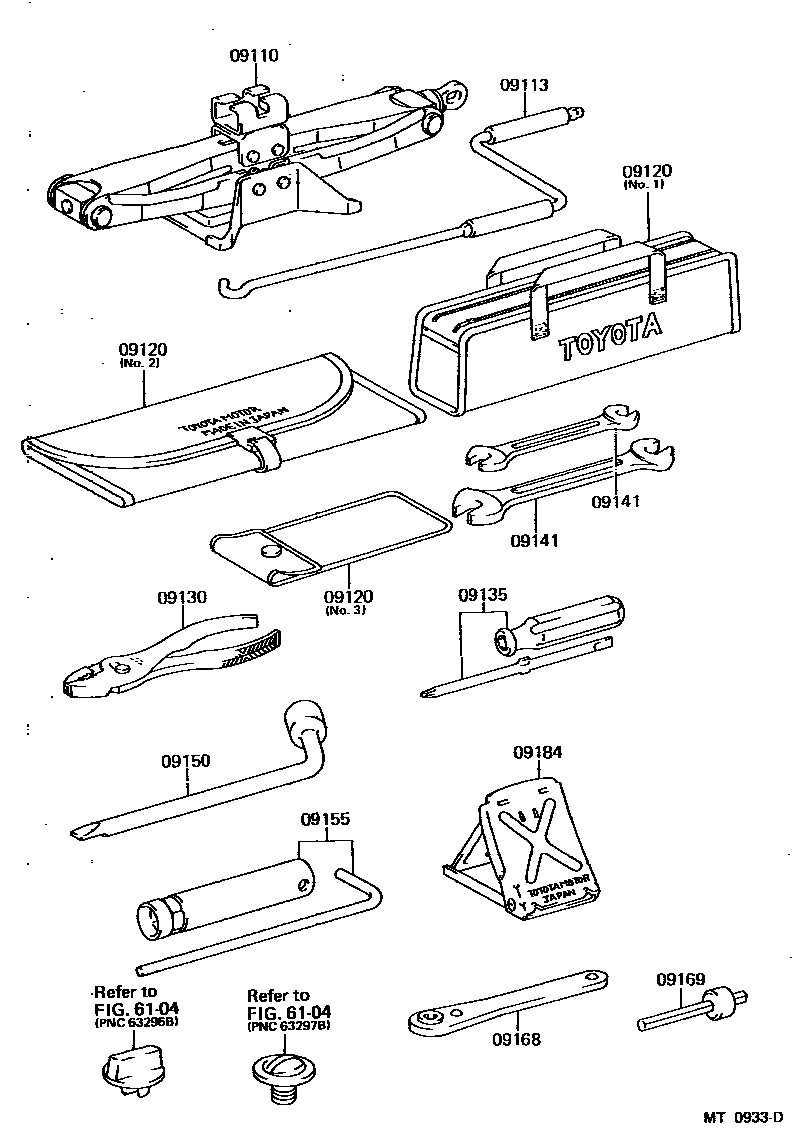

Toyota SUPRA — STANDARD TOOL

09110JACK ASSY

main09111-14060199010-199305

main09111-24030198808-199010

09113HANDLE, JACK

main09113-24020198808-199305

09120BAG, TOOL

main09120-10030198808-199010

main09120-12011199010-199305

main09120-14011198808-199305

main09120-14040198808-199305

09130PLIERS

main99913-11500198808-199305

09135DRIVER, SCREW

main99915-10700198808-199305

09141SPANNER

main99914-10810198808-199305

main99914-11214198808-199305

09150WRENCH, HUB NUT BOX

main09150-40010198808-199305

09155WRENCH, SPARK PLUG

main09155-00100198808-199305

09168WRENCH, ROOF PANEL

main09168-14010198808-199305

09169HANDLE, ROOF PANEL

main09169-14010198808-199305

09184STOPPER, WHEEL

main09184-00010198808-199305

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

12 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
