Toyota SUPRA — STANDARD TOOL

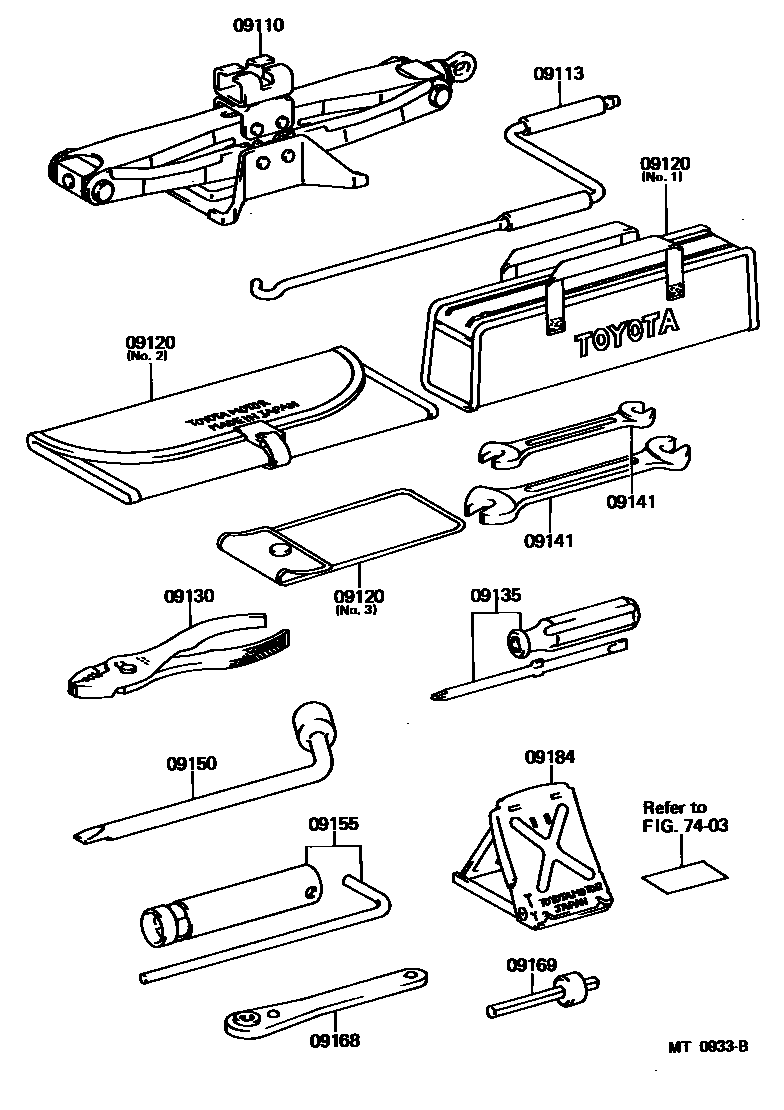

Parts diagram
09110JACK ASSY
main09111-14050i198601-198808
main09111-24030i198601-198808
09113HANDLE, JACK
main09113-24020i198601-198808
09120BAG, TOOL
main09120-10030i198601-198808
NO.2
main09120-14010i198610-198707
NO.3
main09120-14011i198707-198808
NO.3
main09120-14020i198601-198808
NO.1
main09120-14030i198604-198610
NO.3
09130PLIERS
main99913-11500i198601-198808
09135DRIVER, SCREW
main99915-10700i198601-198808
09141SPANNER
main99914-10810i198601-198808
8 X 10,8X10
main99914-11214i198601-198808
12 X 14,12X14
09150WRENCH, HUB NUT BOX
main09150-40010i198601-198808
09155WRENCH, SPARK PLUG
main09155-00100i198601-198808
09168WRENCH, ROOF PANEL
main09168-14010i198604-198808
09169HANDLE, ROOF PANEL
main09169-14010i198604-198808
09184STOPPER, WHEEL
main09184-00010i198601-198808
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03

12 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
