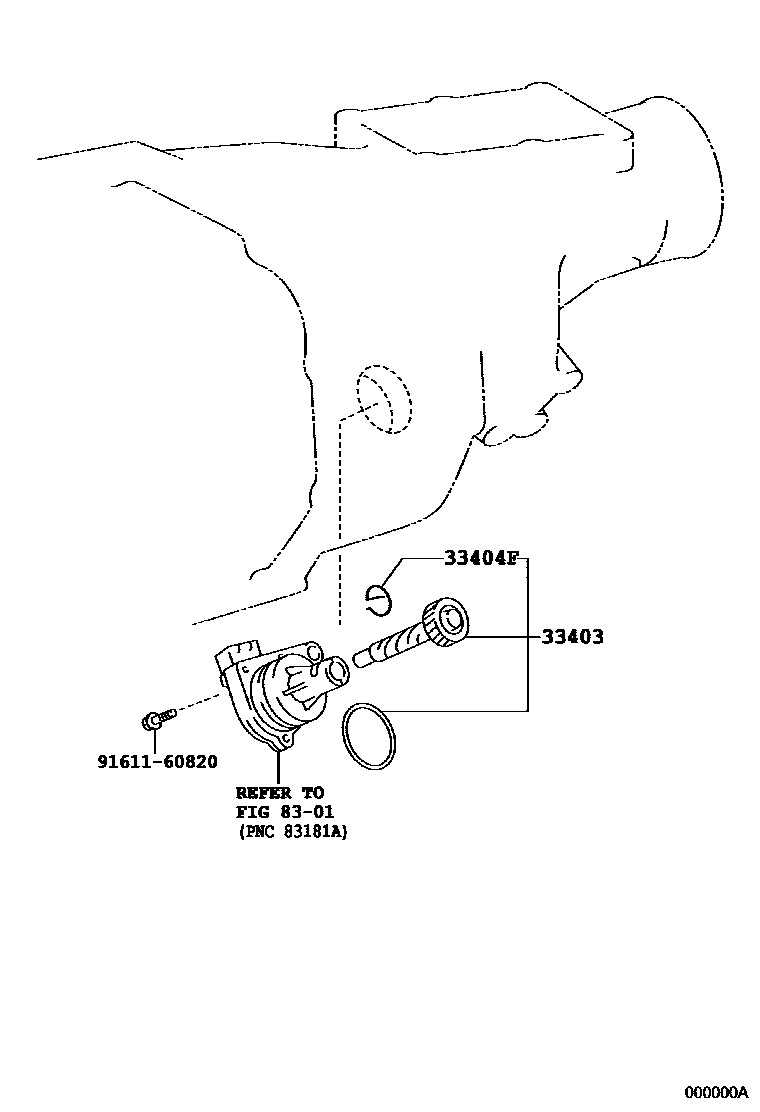

Toyota SUPRA — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19575i199305-199601

N=31,MARK 31:12

main33403-29325i199305-199605

N=33,MARK 33:10

main33403-39425i199305-199605

N=32,MARK 32:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199305-199605

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

4 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota SUPRA

This section contains 6 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota SUPRA. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
