Toyota SUPRA — PARTIAL ENGINE ASSEMBLY

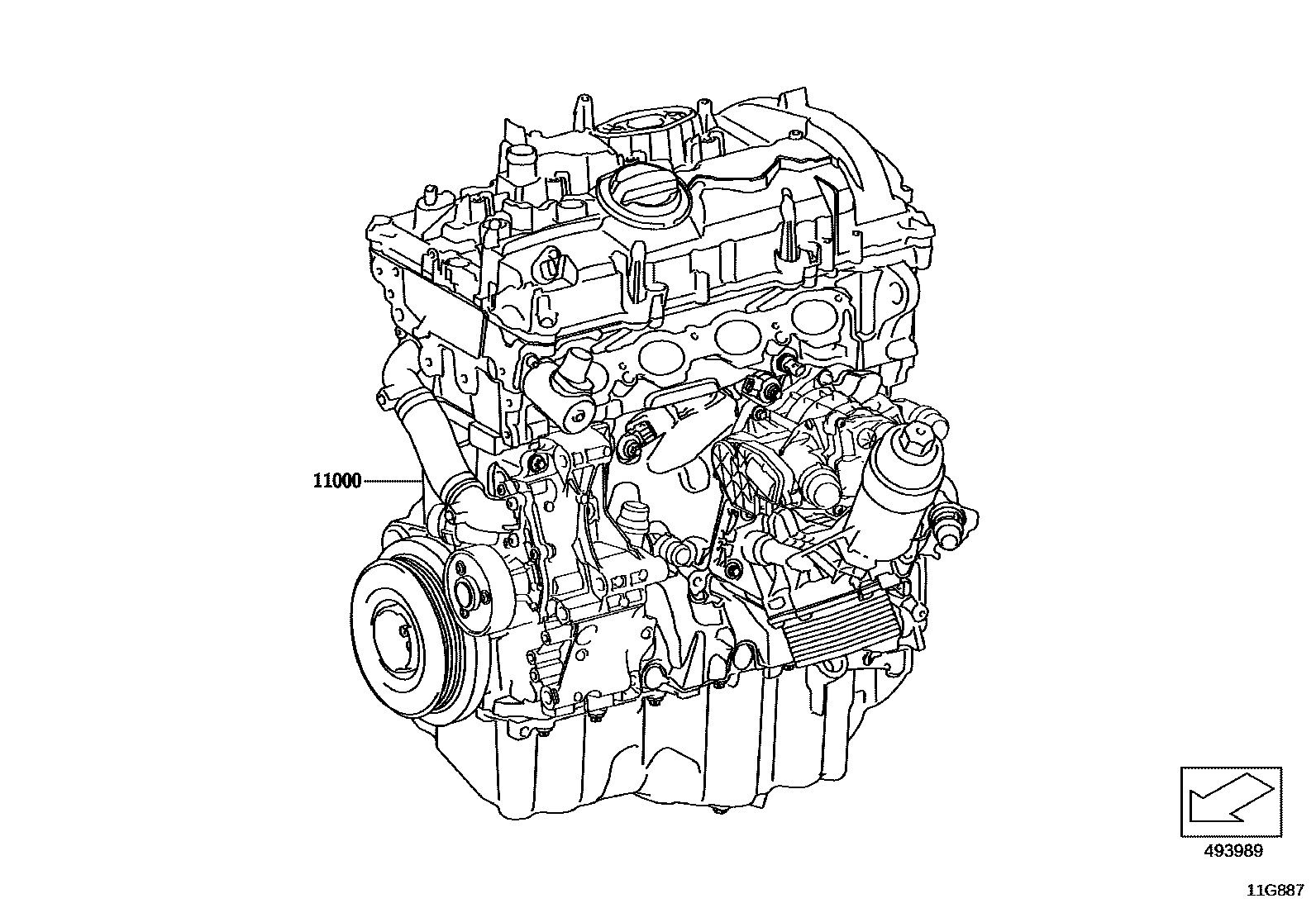

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-WAA15i202207

main19000-WAA05supersedes 19000-WAA16i202207

TRANSMISSION-8HP51

main19000-WAA13supersedes 19000-WAA17i202207

TRANSMISSION-8HP51

1 parts on this diagram · 2 diagrams in section
