Toyota SUPRA — MOUNTING

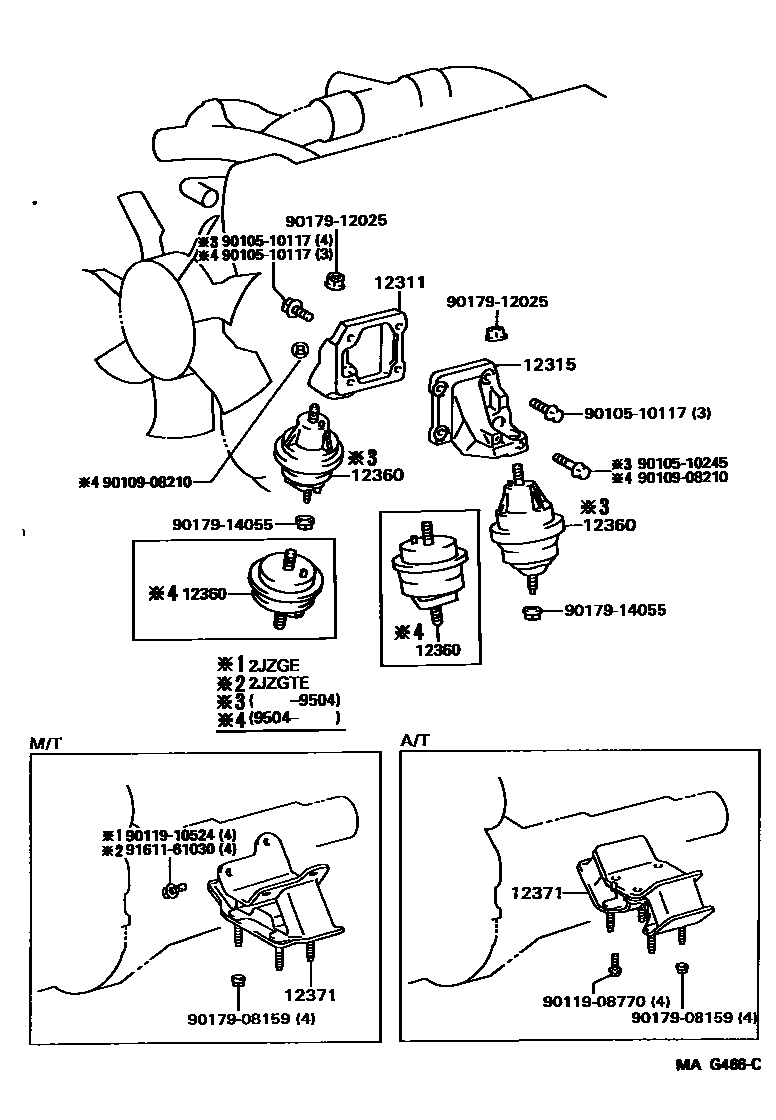

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46041i199504-199605

main12311-46090i199305-199504

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46041i199504-199605

main12315-46090i199305-199504

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46070×2i199305-199504

main12360-46110×2i199504-199605

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46020i199408-199605

main12371-46090i199305-199605

main12371-46110i199305-199601

main12371-46120i199305-199601

9010510117

main90105-10117

9010510245

main90105-10245

9010908210

main90109-08210

9011908770

main90119-08770

9011910524

main90119-10524

9017908159

main90179-08159

9017912025

main90179-12025

9017914055

main90179-14055

9161161030

main91611-61030

13 parts on this diagram · 1 diagram in section

MOUNTING for Toyota SUPRA

This section contains 13 genuine Toyota parts for the MOUNTING system of the Toyota SUPRA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR ASSY, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
