Toyota SUPRA — MIRROR

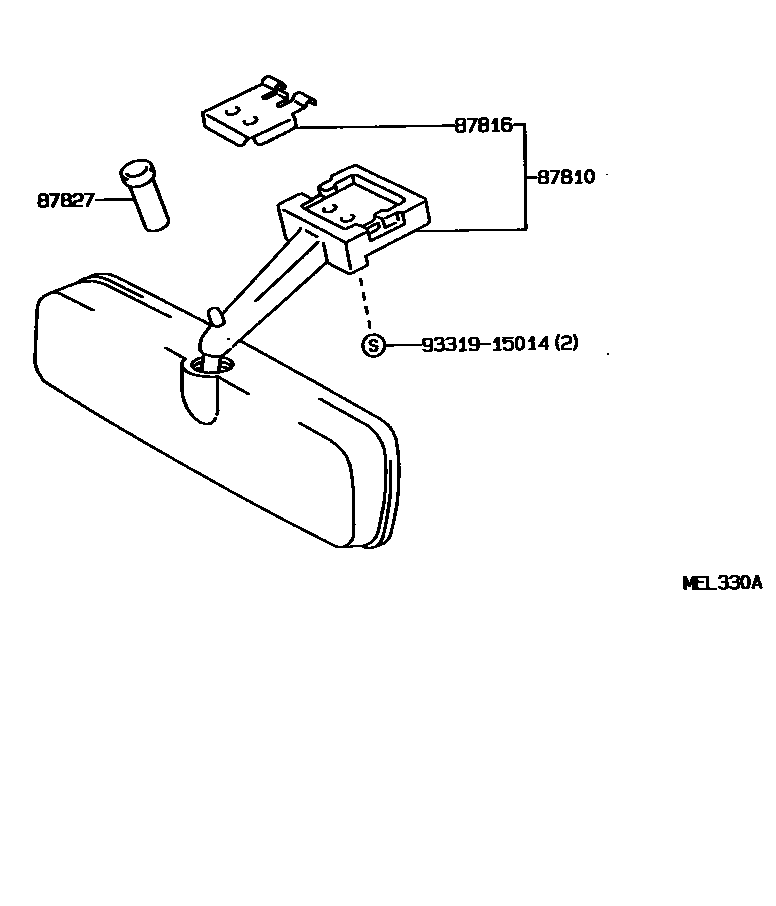

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-02i198808-199008

MAROON,TRIM3#

main87810-14170-03i198808-198901

MEDIUM GRAY,TRIM1#

main87810-14170-04i198808-199305

DEEP BLUE,TRIM8#

main87810-14170-06i198908-199008

BROWN,TRIM4#

main87810-14170-13i199008-199305

SHADOW GRAY,TRIM1#

main87810-14170-22i199008-199305

DEEP RED,TRIM3#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198808-199108

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-12020i198808-199108

9331915014

main93319-15014

4 parts on this diagram · 2 diagrams in section

MIRROR for Toyota SUPRA

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota SUPRA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
