Toyota SUPRA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01121×6i198601-198808

PQ16R,RQ16R

main90919-01145×6i198708-198808

PQ20R

main90919-01149×6i198601-198808

Q20R-U,Q20R-U

19500COIL ASSY, IGNITION

main90919-02154i198601-198808

main90919-02174×3i198708-198808

19519COVER, IGNITION COIL

main19509-42010i198708-198808

main19519-43010i198601-198808

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21384i198601-198808

main90919-22176i198708-198808

19901ACORD, COIL RESISTIVE

main90919-13252i198601-198808

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12640i198708-198808

main90919-12652i198601-198808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12641i198708-198808

main90919-12653i198601-198808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12642i198708-198808

main90919-12654i198601-198808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12643i198708-198808

main90919-12655i198601-198808

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12644i198708-198808

main90919-12656i198601-198808

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12645i198708-198808

main90919-12657i198601-198808

19941CLAMP, RESISTIVE CORD, NO.1

main19941-42010i198601-198808

main90929-01140i198708-198808

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00424i198601-198808

main90929-01141i198708-198808

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00425×2i198601-198808

19949CLAMP, RESISTIVE CORD, NO.5

main90929-01129i198601-198808

9046400314

main90464-00314

9046400343

main90464-00343

9165140616

main91651-40616

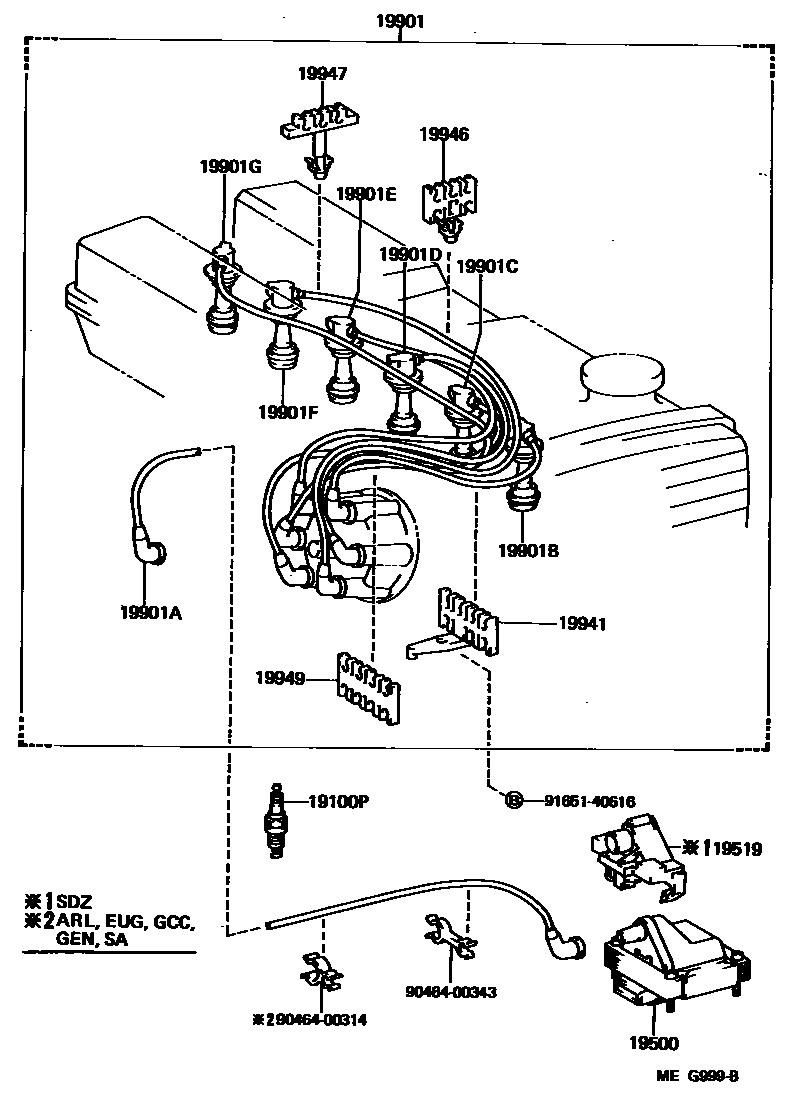

18 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SUPRA

This section contains 32 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SUPRA. Key components include: COIL ASSY, W/BRACKET & CORD, BUSH(FOR IGNITION COIL BRACKET), SPACER(FOR IGNITION COIL BRACKET), PLUG, SPARK, COIL ASSY, IGNITION.
