EPC Data

Toyota SUPRA — HORN

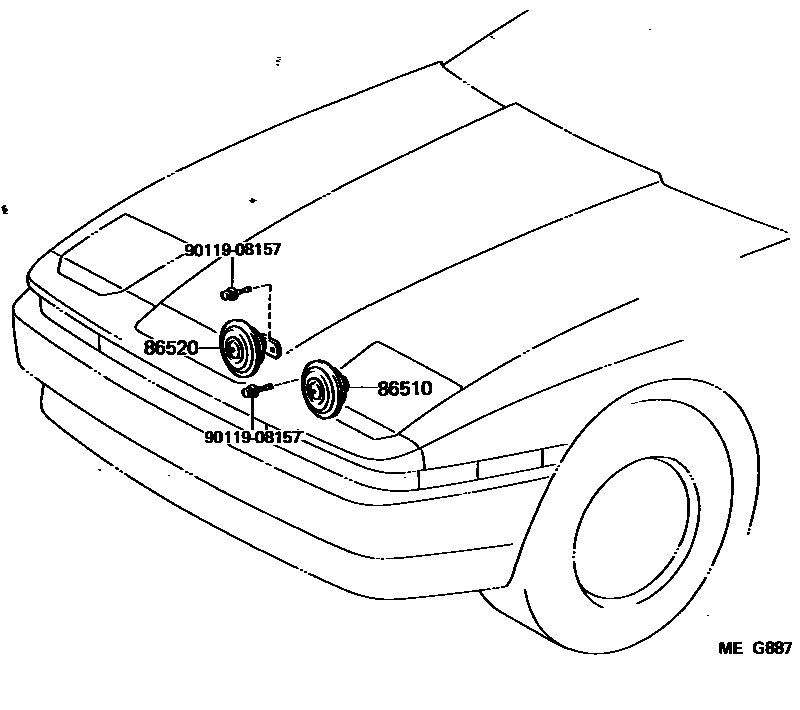

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-14210i198601-198808
DENSO
main86510-14220i198601-198808
MARUKO
main86510-14230i198601-198808
main86510-14240i198601-198808
W/NOISE FILTER
86520HORN ASSY, LOW PITCHED
main86520-14210i198601-198808
DENSO
main86520-14220i198601-198808
MARUKO
main86520-14230i198601-198808
main86520-14240i198601-198808
W/NOISE FILTER
9011908157
main90119-08157

3 parts on this diagram · 1 diagram in section

HORN for Toyota SUPRA

This section contains 3 genuine Toyota parts for the HORN system of the Toyota SUPRA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
