Toyota SUPRA — HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160i199008-199108

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14111i198808-199109

DEALER OPTION

main88411-14120i198808-199008

MAKER OPTION

88320COMPRESSOR ASSY, COOLER

main88320-14521i199008-199108

DEALER OPTION,HONG KONG SPEC

main88320-14523i199008-199305

DEALER OPTION

main88320-14550i198808-199305

main88320-14560i198808-199008

MAKER OPTION

main88320-14561i199008-199305

MAKER OPTION

88330CLUTCH ASSY, MAGNET

main88410-14181i198808-198901

main88410-14210i199209-199305

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199108-199305

3 PIECE SET

main90099-01553i199108-199305

T=0.1

main90099-01554i199108-199305

T=0.3

main90099-01555i199108-199305

T=0.5

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i199108-199305

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-14240i198808-199305

main88431-24070i199108-199305

88444BRACKET, IDLE PULLEY

main88444-24010i199008-199108

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010i198808-199008

88596APLATE, CAUTION

main88356-12010i198808-199008

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011910158

main90119-10158

9011910405

main90119-10405

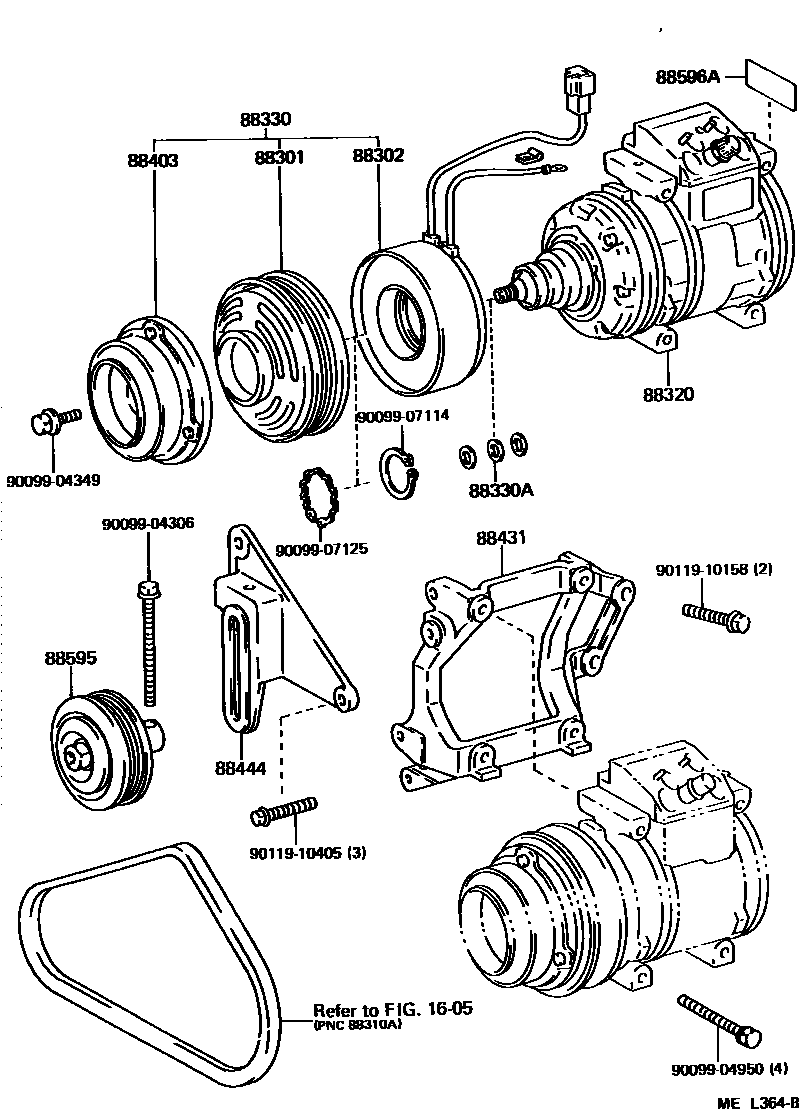

18 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota SUPRA

This section contains 32 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota SUPRA. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, BOLT, THROUGH.
