Toyota SUPRA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-1B180i199305-199408

main81110-1B190i199305-199605

main81110-1B210i199305-199601

main81110-1B220i199305-199408

*FRG

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199305-199605

12V 65W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2i199305-199605

12V 51W

81125CORD, HEADLAMP

main81125-1B160i199305-199605

main81165-1B160i199305-199605

81135UNIT ASSY, HEADLAMP, RH

main81130-1B180i199305-199408

main81130-1B190i199305-199605

main81130-1B210i199305-199601

main81130-1B220i199408-199601

*FRG OR FINLAND SPEC

81150HEADLAMP ASSY, LH

main81150-1B180i199305-199408

main81150-1B190i199305-199605

main81150-1B210i199305-199601

main81150-1B220i199408-199601

*FRG OR FINLAND SPEC

81175UNIT ASSY, HEADLAMP, LH

main81170-1B180i199305-199408

main81170-1B190i199305-199605

main81170-1B210i199305-199601

main81170-1B220i199408-199601

*FRG OR FINLAND SPEC

81210DBULB, FOG LAMP

main90981-13018×2i199305-199605

12V 55W,HALOGEN

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199305-199605

12V 5W

9011906615

main90119-06615

9017906132

main90179-06132

9018906111

main90189-06111

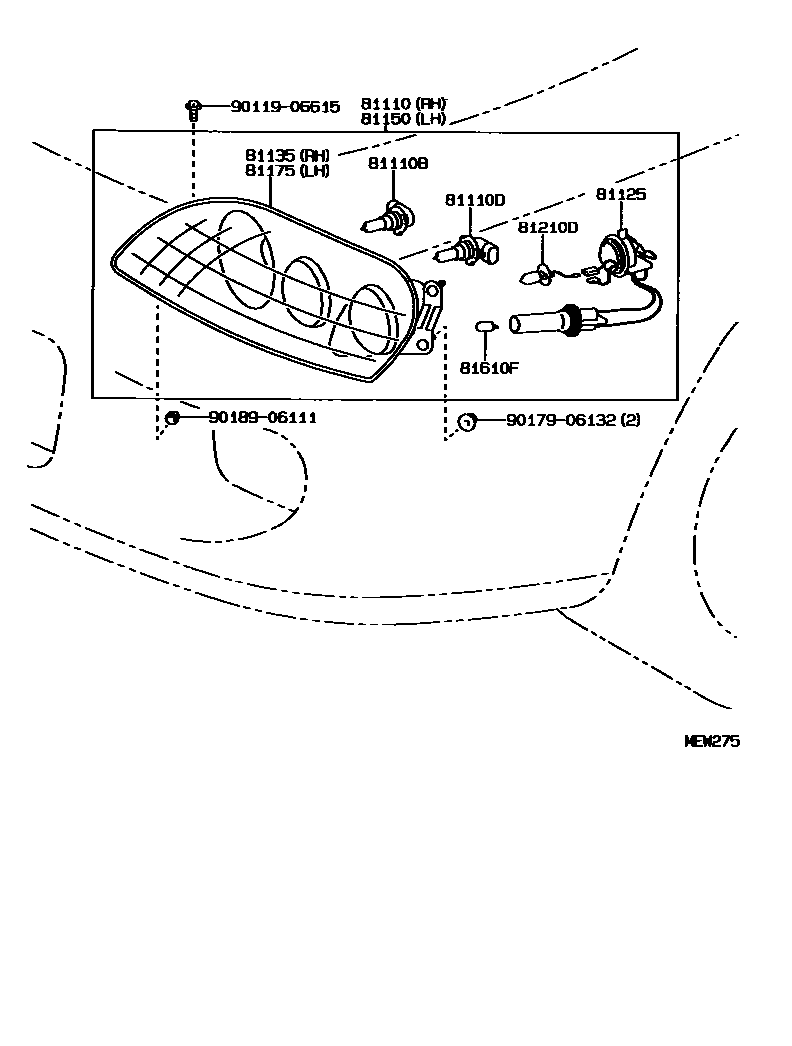

12 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota SUPRA

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota SUPRA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH.
