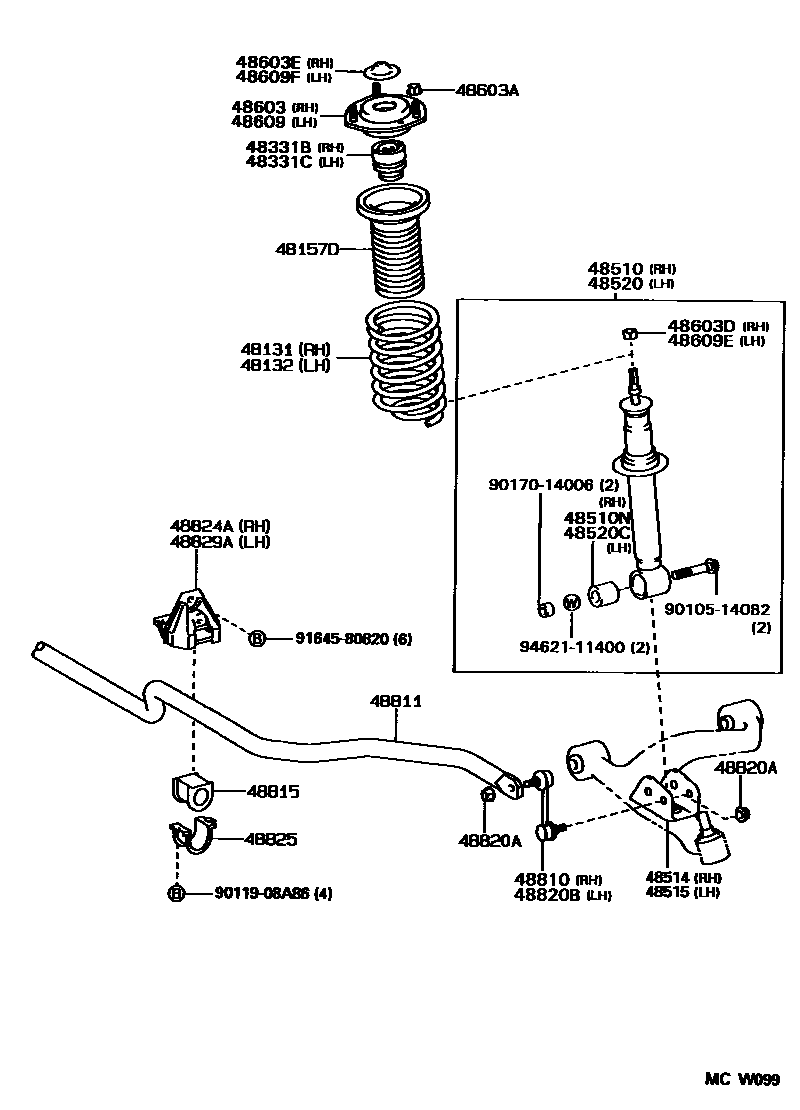

Toyota SUPRA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-1D561iJZA80..RHD..GEN199312-199408

main48131-1D571iJZA80..RHD..GEN199305-199312

main48131-1D572iJZA80..LHD..(GCC,GEN)199312-199605

main48131-1D591iJZA80..RHD..EUR199312-199601

sub48131-1D612

main48131-1D601iJZA80..LHD..EUR199305-199312

main48131-1D602iJZA80..LHD..EUR199312-199601

sub48131-1D612

main48131-1D611iJZA80..RHD..EUR199305-199312

sub48131-1D612

48132SPRING, FRONT COIL, LH

main48131-1D561iJZA80..GCC,GEN199312-199605

main48131-1D571iJZA80..5F199305-199312

main48131-1D591iJZA80..EUR199312-199601

sub48131-1D612

main48131-1D611iJZA80..EUR199305-199312

sub48131-1D612

48157DINSULATOR, FRONT COIL SPRING

main48157-24010×2iJZA80199305-199605

48331BBUMPER, FRONT SPRING, RH

main48331-14080iJZA80199305-199605

48331CBUMPER, FRONT SPRING, LH

main48331-14080iJZA80199305-199605

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19275iJZA80..EUR199305-199601

MARK 48510-14660

main48510-19285iJZA80..GCC,GEN199305-199605

MARK 48510-14690

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-14028iJZA80199305-199605

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-24010iJZA80199305-199605

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-24010iJZA80199305-199605

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-19275iJZA80..EUR199305-199601

MARK 48510-14660

main48510-19285iJZA80..GCC,GEN199305-199605

MARK 48510-14690

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-14028iJZA80199305-199605

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-14050iJZA80199305-199506

main48680-14051iJZA80199506-199605

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10200×6iJZA80199305-199605

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94187-11200iJZA80199305-199605

sub90177-12002

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iJZA80199305-199605

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-14050iJZA80199305-199506

main48680-14051iJZA80199506-199605

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94187-11200iJZA80199305-199605

sub90177-12002

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iJZA80199305-199605

48810LINK ASSY, FRONT STABILIZER, LH

main48820-24010iJZA80199305-199605

48811BAR, STABILIZER, FRONT

main48811-14440iJZA80..GCC,GEN199305-199605

main48811-24100iJZA80..EUR199305-199601

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14080×2iJZA80..EUR199305-199601

main48815-14090×2iJZA80..GCC,GEN199305-199605

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054×4iJZA80199305-199605

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-24010iJZA80199305-199605

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-24010iJZA80199305-199605

48825BRACKET, STABILIZER, NO.2

main48824-24030×2iJZA80199305-199605

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-24020iJZA80199305-199605

9010514082

main90105-14082

9011908A86

main90119-08A86

9017014006

main90170-14006

9164580820

main91645-80820

9462111400

main94621-11400

31 parts on this diagram · 1 diagram in section
