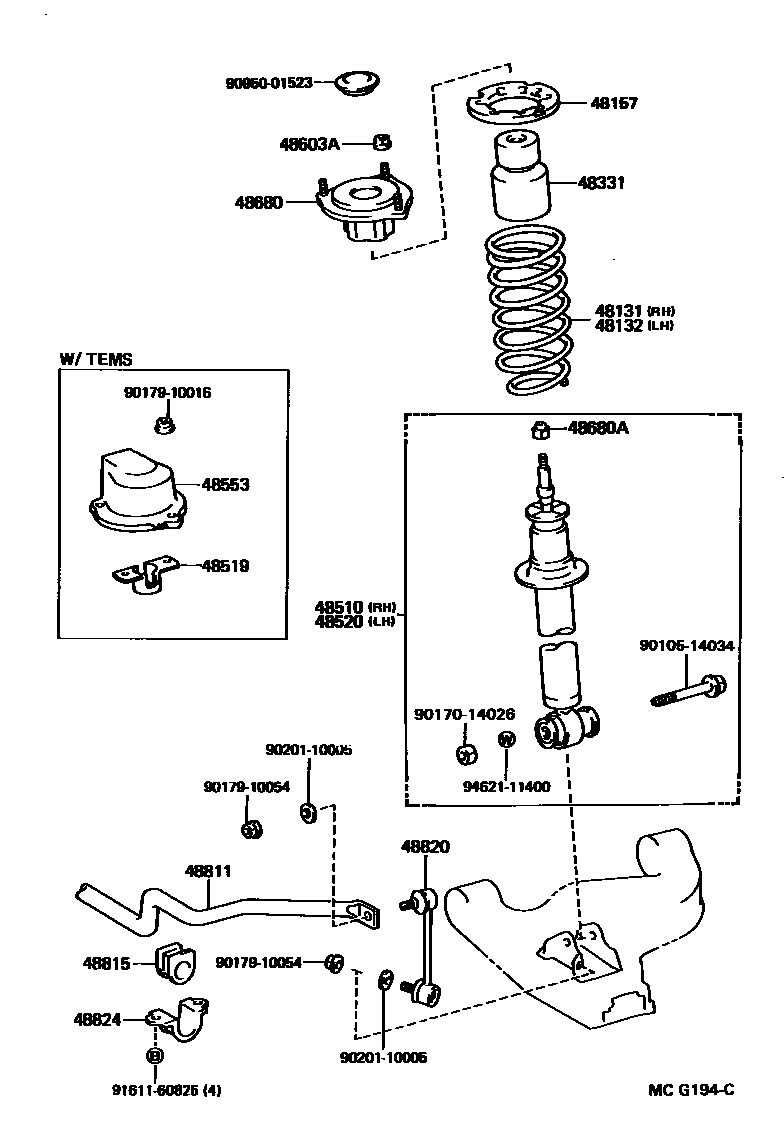

Toyota SUPRA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-1D140iMA70..TWC..ARL198808-198809

main48131-1D250iMA70..TWC..ARL198808-198809

W(TEMS)

main48131-1D270iMA70..RHD..TWT..C;MA70..SPR..TWT..C198808-199008

main48131-1D290iMA70..LHD..LB..TWC198808-199008

main48131-1D300iMA70..LHD..SPR..TWC;MA70..RHD..LB..TWC..(C,EUR,GEN)198808-199008

main48131-1D310iMA70..SPR..GEN;MA70..LHD..LB..TWT198808-199008

main48131-1D320iMA70..LB..TWT..ARL198808-198810

W(TEMS)

main48131-1D330iMA70..SPR..ARL198810-199008

sub48131-1D370

main48131-1D390iMA70..TWT..ARL198808-198810

main48131-1D400iMA70..TWC..C;MA70..LHD..(C,GEN)199008-199305

main48131-1D420iMA70..V;MA70..RHD..GEN;MA70..RHD..TWT..C199008-199305

main48131-1D460iMA70..ARL199008-199305

48132SPRING, FRONT COIL, LH

main48131-1D160iMA70..LB..TWT..ARL198808-198810

main48131-1D170iMA70..SPR..TWT..C198808-199008

main48131-1D190iMA70..TWC..ARL198808-198809

main48131-1D270iMA70..LHD..LB..TWT198808-199008

main48131-1D280iMA70..LB..TWT..ARL198810-199008

main48131-1D290iMA70..RHD..LB..TWC..(C,EUR,GEN)198808-199008

main48131-1D300iMA70..SPR..GEN;MA70..LHD..LB..TWC198808-199008

main48131-1D310iMA70..RHD..TWT..C;MA70..LHD..SPR..TWC198808-199008

main48131-1D320iMA70..SPR..ARL198808-198810

W(TEMS)

main48131-1D360iMA70..SPR..ARL198808-198810

main48131-1D380iMA70..TWC..ARL198809-199008

main48131-1D400iMA70..RHD..GEN;MA70..RHD..TWT..C199008-199305

main48131-1D410iMA70..TWC..C199008-199305

main48131-1D420iMA70..ARL;MA70..LHD..(C,GEN)199008-199305

main48131-1D460iMA70..V199008-199305

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-14020×2iMA70198808-199305

48331BUMPER, FRONT SPRING, NO.1

main48331-14060×2iMA70198808-199008

main48331-14070×2iMA70199008-199305

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19135iMA70..ARL199008-199305

W(TEMS)

main48510-19165iMA70198808-199008

sub48510-19166

main48510-19185iMA70..ARL198808-199008

W(TEMS)

main48510-19225iMA70..TWC;MA70..RHD..TWT199008-199305

sub48510-19226

main48510-19245iMA70..LHD..C199008-199305

sub48510-19246

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-14010×2iMA70..ARL198808-199305

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-19135iMA70..ARL199008-199305

W(TEMS)

main48510-19165iMA70198808-199008

sub48510-19166

main48510-19185iMA70..ARL198808-199008

W(TEMS)

main48510-19225iMA70..TWC;MA70..RHD..TWT199008-199305

sub48510-19226

main48510-19245iMA70..LHD..C199008-199305

sub48510-19246

48553CAP, SHOCK ABSORBER, UPPER

main48553-24030×2iMA70..ARL198808-199305

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10016×6iMA70198808-199305

sub90179-10132

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-14041×2iMA70198808-199305

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94187-11200×2iMA70198808-199305

sub90177-12002

48811BAR, STABILIZER, FRONT

main48811-24041iMA70..C,EUR,GEN,V198810-199008

main48811-24050iMA70..ARL198810-199008

main48811-24060iMA70199008-199305

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-24030×2iMA70198808-199008

main48815-24040×2iMA70199008-199305

48820LINK ASSY, FRONT STABILIZER

main48820-14011×2iMA70198808-199104

main48820-24010×2iMA70199104-199305

48824BRACKET, STABILIZER, FRONT

main48824-14060×2iMA70198808-199305

9010514034

main90105-14034

9017014026

main90170-14026

9017910016

main90179-10016

9017910054

main90179-10054

9020110005

main90201-10005

9095001523

main90950-01523

9161160825

main91611-60825

9462111400

main94621-11400

23 parts on this diagram · 1 diagram in section
