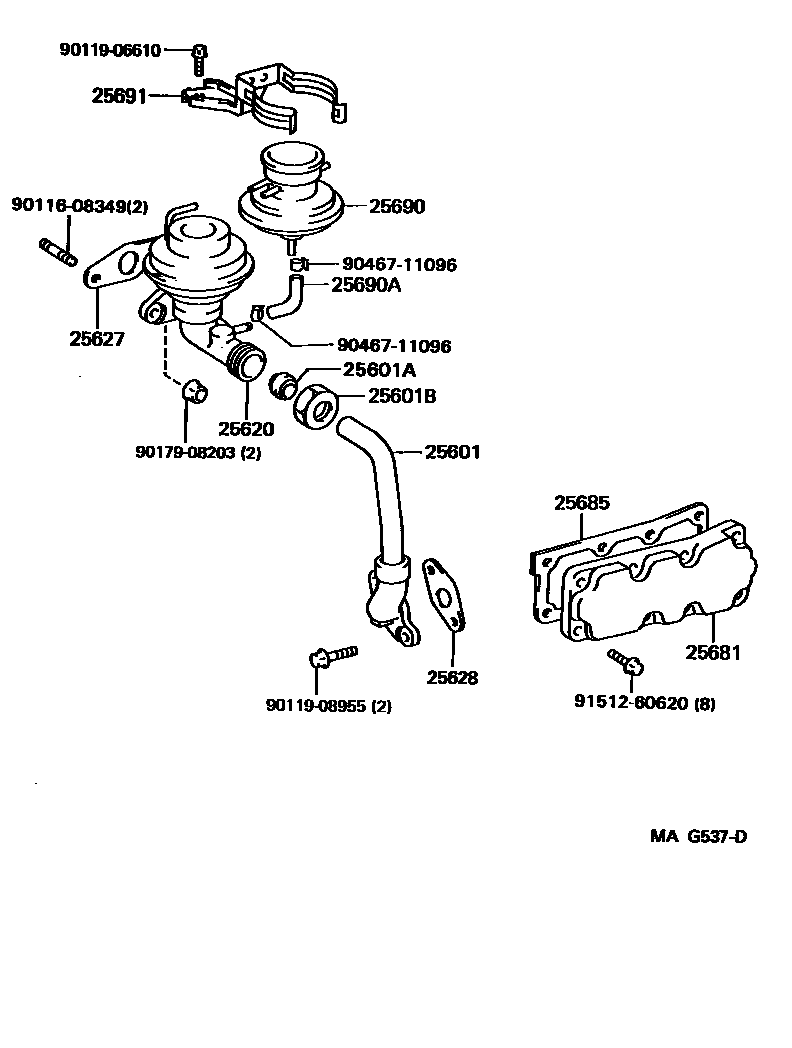

Toyota SUPRA — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-46020i199305-199507

main25601-46021i199507-199601

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-18002i199305-199601

25601BNUT, UNION, EGR PIPE, NO.1

main90402-26002i199305-199601

25620VALVE ASSY, EGR

main25620-46030i199305-199601

main25620-46040i199305-199601

25627GASKET, EGR VALVE

main25627-46030i199305-199601

25628GASKET, EGR INLET

main25628-46010i199305-199601

25681COOLER, EGR, NO.1

main25681-46010i199305-199601

25685GASKET, EGR COOLER, NO.1

main25685-46010i199305-199601

25690MODULATOR ASSY, EGR VACUUM

main25690-46010i199305-199601

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-46020i199305-199601

25691BRACKET, EGR VACUUM MODULATOR

main25691-46020i199305-199601

main25691-46030i199305-199601

9011608349

main90116-08349

9011906610

main90119-06610

9011908955

main90119-08955

9017908203

main90179-08203

9046711096

main90467-11096

9151260620

main91512-60620

17 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota SUPRA

This section contains 17 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota SUPRA. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
