Toyota SUPRA — ELECTRONIC FUEL INJECTION SYSTEM

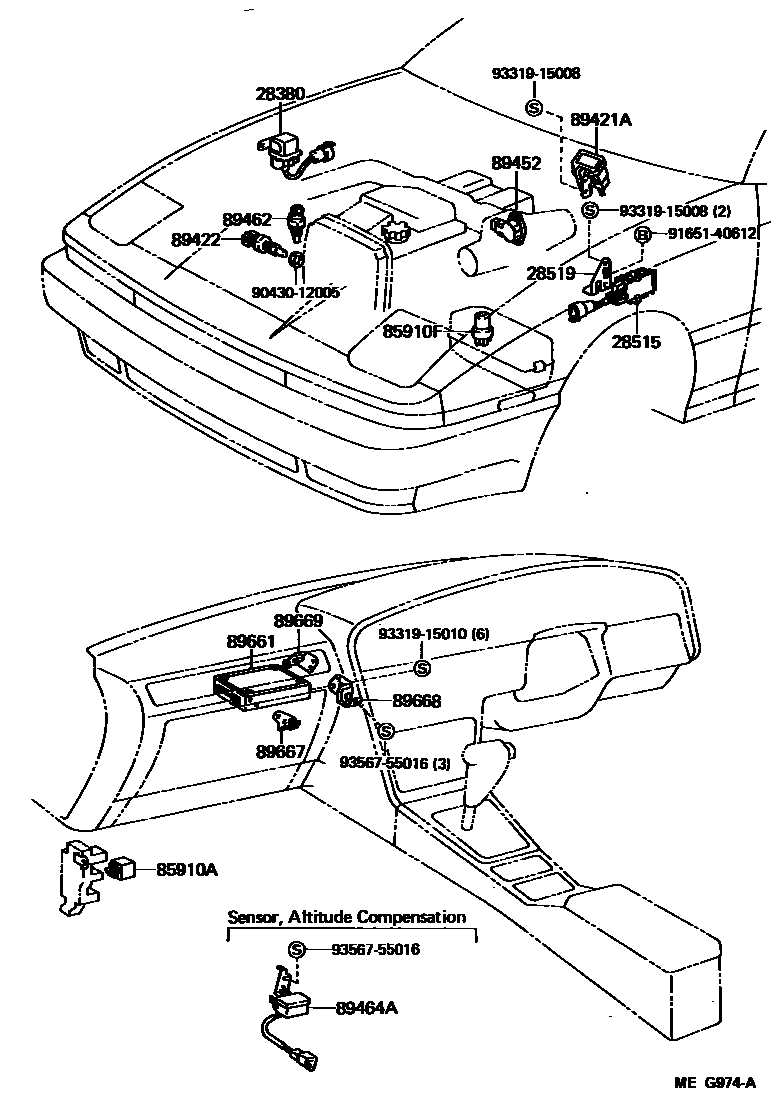

Parts diagram

28380RELAY ASSY, FUEL PUMP

main28380-43010i198601-198808

28515RESISTOR, SOLENOID

main28515-43040i198601-198808

28519BRACKET, SOLENOID RESISTOR

main28519-70020i198601-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050i198601-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004i198601-198808

89421ASENSOR, TURBO PRESSURE

main89420-14020i198708-198808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020i198601-198808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050i198611-198808

main89452-28030i198601-198611

89462SWITCH, START INJECTOR TIME

main89462-30011i198601-198808

main89462-40010i198601-198808

89464ASENSOR, ALTITUDE COMPENSATION

main89464-14040i198708-198808

89661COMPUTER, ENGINE CONTROL

main89661-14090i198601-198606

main89661-14091i198606-198608

main89661-14092i198608-198803

main89661-14093i198803-198808

main89661-14100i198601-198608

main89661-14101i198608-198803

main89661-14102i198803-198808

main89661-14110i198601-198808

main89661-14120i198601-198808

main89661-14160i198708-198808

main89661-14170i198708-198808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14060i198601-198808

main89667-14070i198601-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14010i198601-198808

main89668-14020i198601-198808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-14010i198601-198808

main89669-14020i198601-198808

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota SUPRA

This section contains 19 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota SUPRA. Key components include: RELAY ASSY, FUEL PUMP, RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI).
