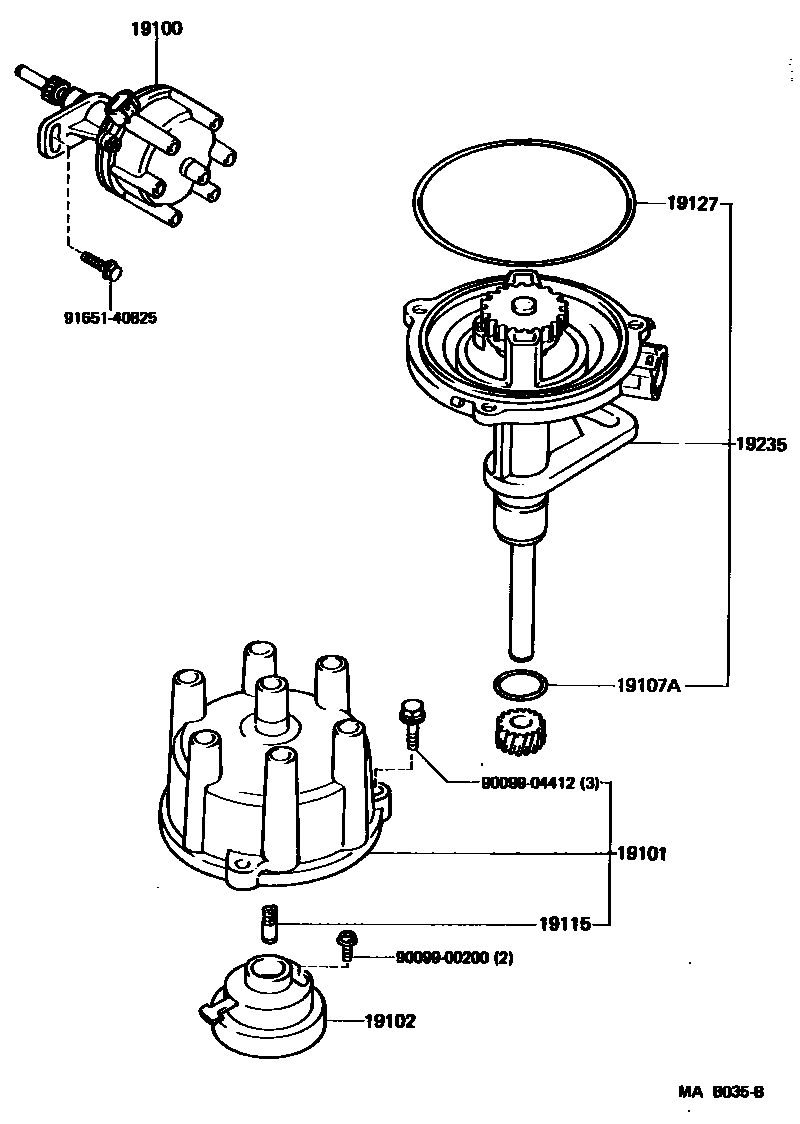

Toyota SUPRA — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-42050i7MGE..MA70198808-199305

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-70160i7MGE..MA70198808-199305

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-70160i7MGE..MA70198808-199305

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i7MGTE..MA70198808-199103

main90099-14088i7MGE..MA70198808-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i7MGE..MA70198808-199305

19127PACKING, DUST PROOF

main19127-42010i7MGTE..MA70198808-199305

main19127-61240i7MGE..MA70198808-199305

19235HOUSING, DISTRIBUTOR

main19235-42050i7MGE..MA70198808-199305

9009900200

main90099-00200

9009904412

main90099-04412

9165140825

main91651-40825

10 parts on this diagram · 2 diagrams in section
