Toyota SUPRA — COWL PANEL & WINDSHIELD GLASS

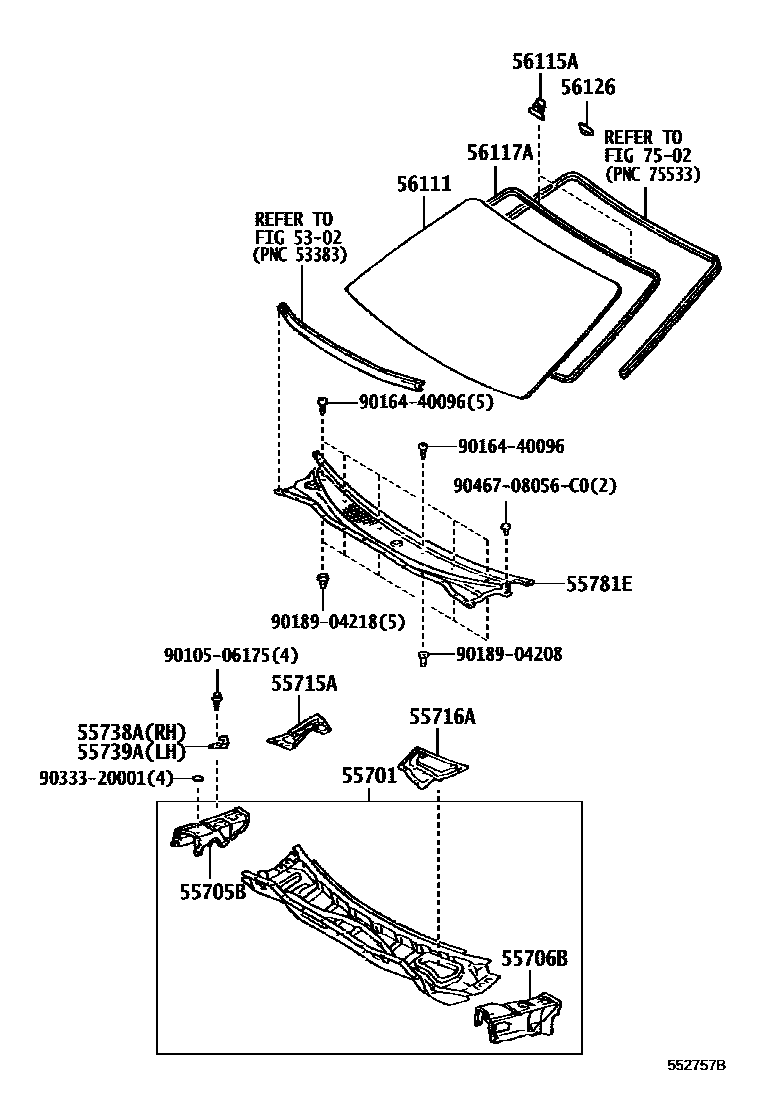

Parts diagram

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

55701PANEL SUB-ASSY, COWL

main55700-14790i199305-199601

main55700-14810i199305-199605

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-14900i199305-199605

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-14900i199305-199605

55715ABRACE, COWL TOP TO APRON, RH

main55715-14100i199305-199601

main55715-14110i199305-199605

55716ABRACE, COWL TOP TO APRON, LH

main55716-14100i199305-199601

main55716-14110i199305-199605

55738ASTOPPER, HOOD, RH

main55738-14020i199305-199605

55739ASTOPPER, HOOD, LH

main55739-14040i199305-199605

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-14030i199305-199601

NORTHERN EUROPE SPEC

main55708-14040i199305-199601

main55708-14050i199305-199605

56111GLASS, WINDSHIELD

main56101-14010i199305-199605

*TL,T=4.7,BLUE

main56101-14020i199305-199605

*TL,T=4.7,BLUE; *TL,T=4.7,BLUE,*TL,T=4.7,W(TOPSHADE)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14030×2i199305-199605

56117ADAM, WINDOW GLASS ADHESIVE

main04562-12010i199305-199501

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030×2i199305-199605

7502FRONT MOULDING

→ Go to FIG 75-02

9010506175

main90105-06175

9016440096

main90164-40096

9018904208

main90189-04208

9018904218

main90189-04218

9033320001

main90333-20001

9046708056C0

main90467-08056C0

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SUPRA

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SUPRA. Key components include: HOOD & FRONT FENDER, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
