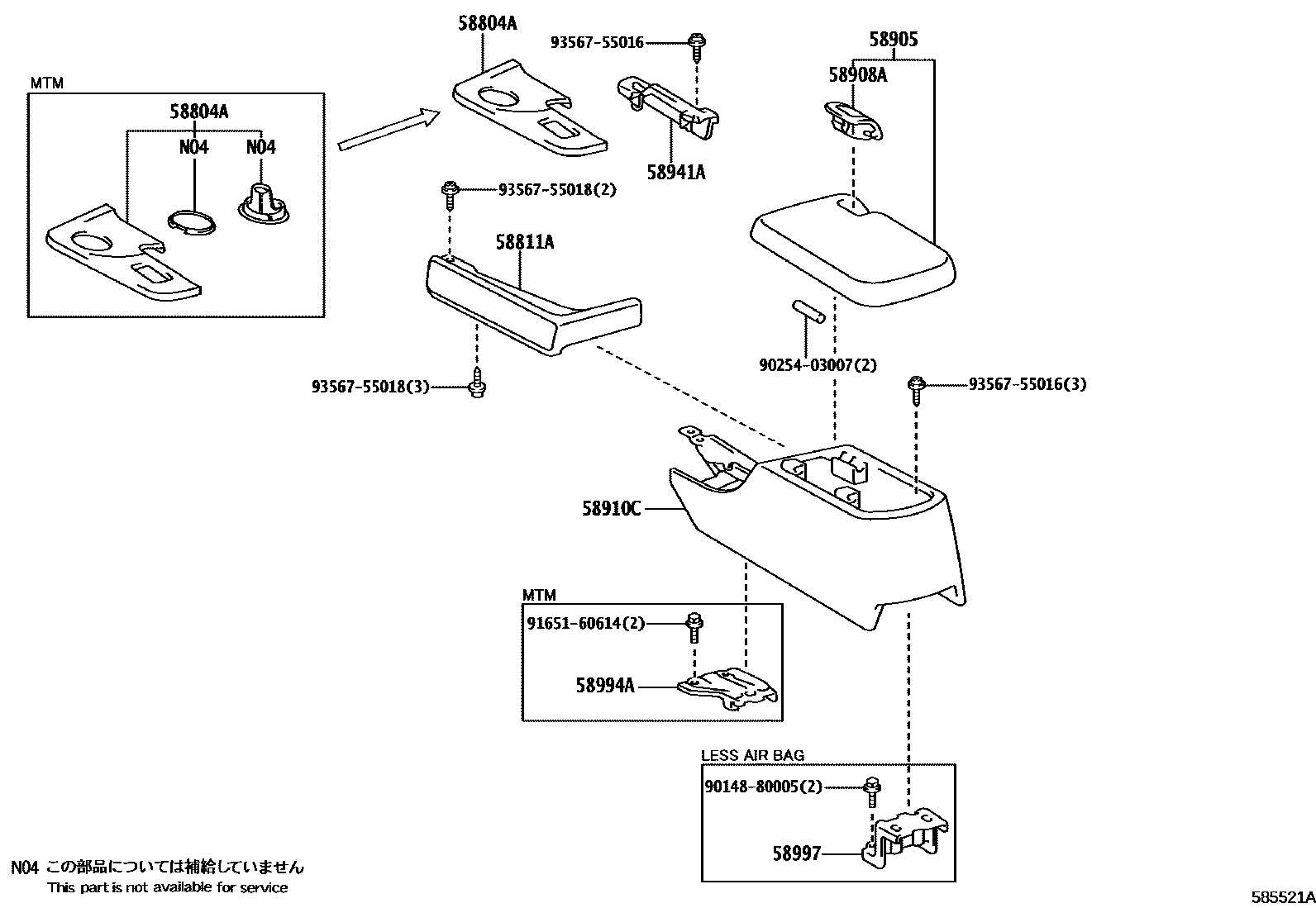

Toyota SUPRA — CONSOLE BOX & BRACKET

0001 1 0002 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-14040iJZA80..RHD..MTM199305-199601

main58804-14050iJZA80..RHD..4FC199305-199601

main58804-14060iJZA80..LHD..MTM199305-199605

main58804-14070iJZA80..LHD..4FC199305-199605

58811ABOX, CONSOLE, FRONT

main58802-14060-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

main58802-14070-C0iJZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14080-C0iJZA80..RHD199305-199404

BLACK,TRIM0#,2#

main58905-14081-C0iJZA80..RHD199404-199408

BLACK,TRIM0#,2#

main58905-14090-C0iJZA80..LHD199305-199404

BLACK,TRIM0#,2#

main58905-14091-C0iJZA80..LHD..(EUR,GEN)199404-199605

BLACK,TRIM0#,2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14020-C0iJZA80199305-199508

BLACK,TRIM0#,2#

58910CBOX ASSY, CONSOLE, REAR

main58911-14120-C0iJZA80..RHD199305-199404

BLACK,TRIM0#,2#

sub58901-14H01

main58911-14121-C0iJZA80..RHD199505-199601

BLACK,TRIM0#,2#

main58911-14130-C0iJZA80..LHD199305-199404

BLACK,TRIM0#,2#

sub58901-14H00

main58911-14131-C0iJZA80..LHD..(EUR,GEN)199404-199605

BLACK,TRIM2#

58941ACOVER, PARKING BRAKE HOLE

main58904-14010iJZA80..RHD199305-199601

main58904-14020iJZA80..LHD199305-199605

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-14010iJZA80..MTM199305-199605

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-14040iJZA80..5F199305-199408

9014880005

main90148-80005

9025403007

main90254-03007

9165160614

main91651-60614

9356755016

main93567-55016

9356755018

main93567-55018

13 parts on this diagram · 2 diagrams in section
