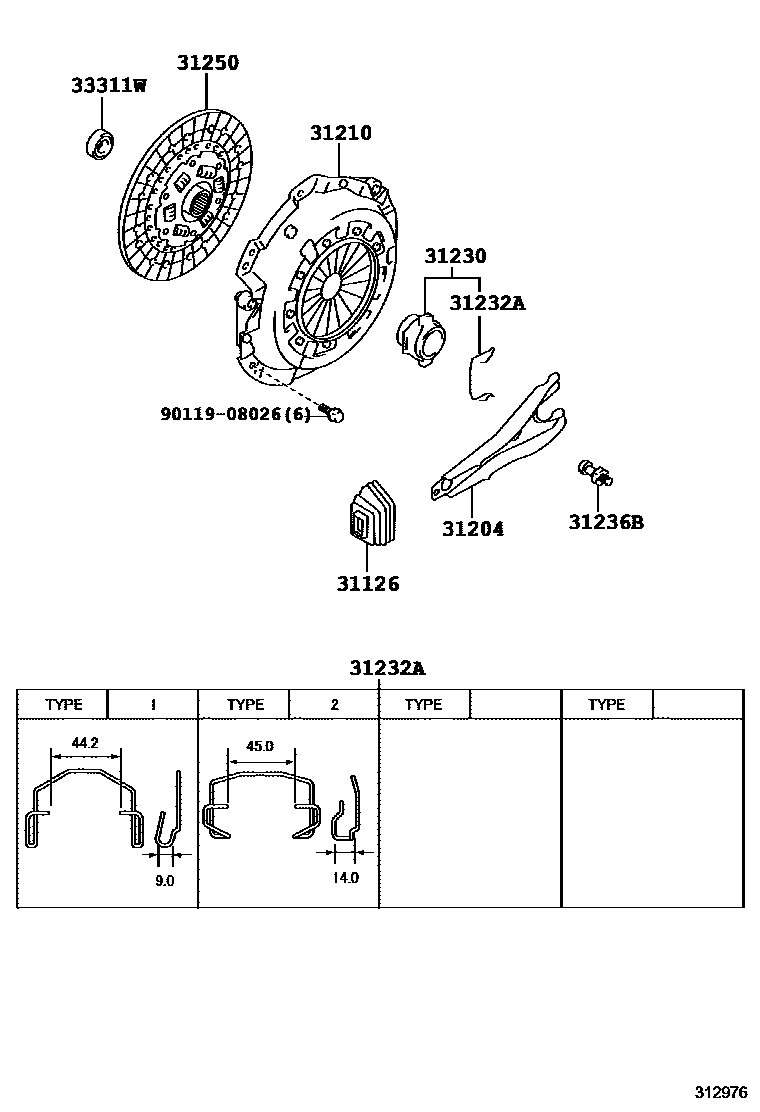

Toyota SUPRA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-22050i199305-199605

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14060i199305-199601

main31204-22050i199305-199605

31210COVER ASSY, CLUTCH

main31210-14170i199305-199601

main31210-30260i199305-199309

main31210-30261i199309-199605

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100i199305-199605

31232ACLIP, RELEASE BEARING HUB

main31232-22020i199305-199605

TYPE 1

main31232-22030i199305-199605

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-14010i199305-199605

main31236-14030i199305-199601

31250DISC ASSY, CLUTCH

main31250-14190i199305-199601

main31250-30390i199305-199605

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i199305-199605

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota SUPRA

This section contains 22 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SUPRA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, PIN(FOR CLUTCH RELEASE FORK), WASHER, WAVE(FOR CLUTCH RELEASE FORK), RING, E(FOR CLUTCH RELEASE FORK).
