Toyota SUPRA — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020i198808-199008

86101CORD SUB-ASSY, ANTENNA

main86101-14390i198808-199008

main86203-14120i198908-199008

W(4AMP RADIO)

main86203-14121i199108-199305

W(4AMP RADIO)

86300ANTENNA ASSY, W/HOLDER

main86300-14360i198808-198809

main86300-14361i199008-199108

main86300-14370i198808-198809

W(REAR SPOILER)

main86300-14371i198809-199008

W(REAR SPOILER)

86327CABLE, W/ANTENNA DRUM

main86327-22210i198808-198811

main86327-22211i198811-199305

86332ROD, ANTENNA

main86336-14350i199008-199108

main86336-14370i198808-199008

W(REAR SPOILER)

86396NUT, ANTENNA

main86396-14041i198808-199008

main86396-14070i198808-199008

W(REAR SPOILER)

8281914210GROMMET, WIRING HARNESS

main82819-14210

9017906115

main90179-06115

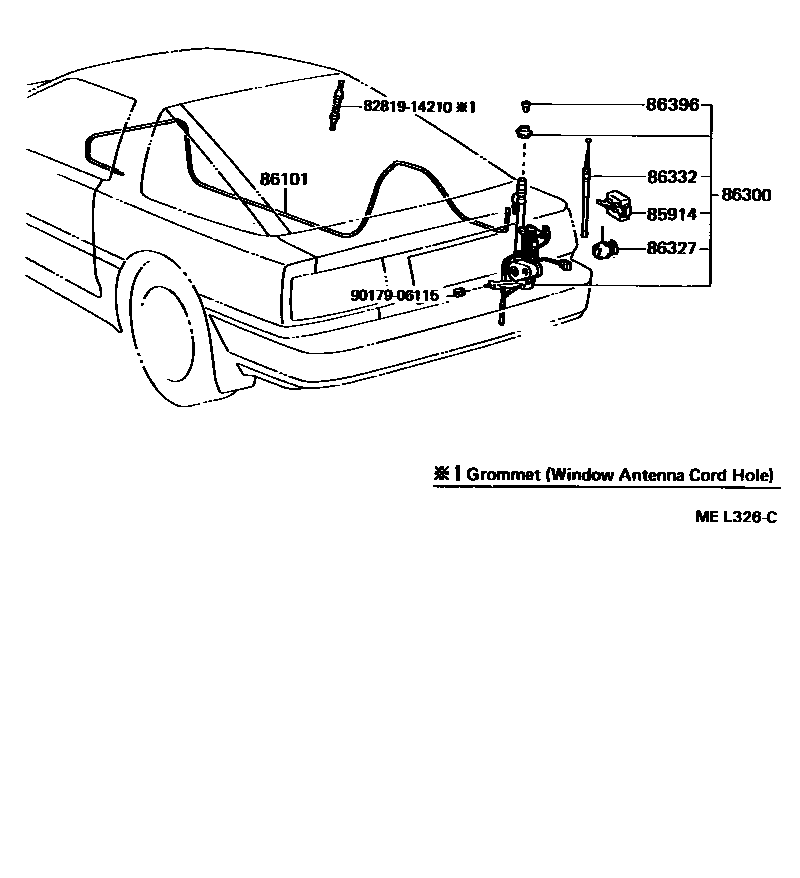

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota SUPRA

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota SUPRA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, CABLE, W/ANTENNA DRUM, ROD, ANTENNA.
