Toyota SUPRA — SWITCH & RELAY & COMPUTER
28380ARESISTER, FUEL PUMP
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82643RELAY, DIM-DIP LAMP
NO.1
NO.1
NO.4,MARUKO
NO.4,DENSO
NO.3
NO.2
82660BLOCK ASSY, RELAY, ENGINE ROOM
82690RESISTOR ASSY, DIM DIP LAMP
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
DENSO
YAZAKI
8419
84210SWITCH ASSY, BACK-UP LAMP
84461SWITCH, LEVEL WARNING
84540SWITCH ASSY, NEUTRAL START
sub84540-30241
85278ARELAY ASSY, HEADLAMP CLEANER CONTROL
85916RELAY, LIGHT CONTROL
TAIL LAMP,MARUKO
TAIL LAMP,DENSO
HEADLAMP
85926RELAY, HEADLAMP DIMMER
85999ABRACKET, RELAY, NO.2
85999HBRACKET, RELAY
88630GRELAY ASSY, COOLER
89466GASKET, OXYGEN SENSOR
sub89466-20020
89615SENSOR, KNOCK CONTROL
89629BRACKET, IGNITER ASSY
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24070
8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24120
9011906033
main90119-06033
9011906067
main90119-06067
9017906069
main90179-06069
9017908059
main90179-08059
9043018007
main90430-18007
9046108312
main90461-08312
9046108365
main90461-08365
9046208008
main90462-08008
9161160612
main91611-60612
9161160812
main91611-60812
9161160814
main91611-60814
9161640614
main91616-40614
9165140612
main91651-40612
9165540620
main91655-40620
9165560818
main91655-60818

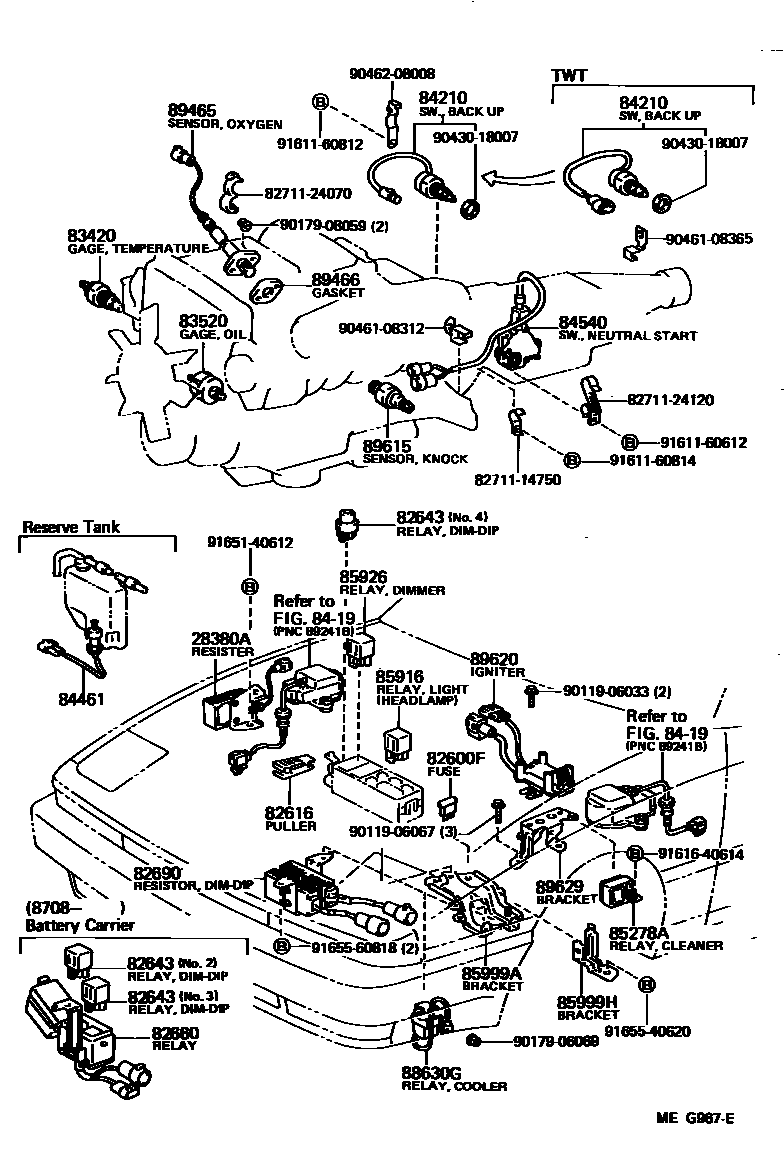

41 parts on this diagram · 4 diagrams in section
