Toyota SUPRA — STANDARD TOOL

09109BOLT SUB-ASSY, JACK HOLDER

main09109-14010i199305-199808

09110JACK ASSY

main09111-14060i199305-199808

09113HANDLE, JACK

main09113-14030i199305-199808

09120BAG, TOOL

main09120-14011i199305-199808

09120ACASE, TOOL

main09120-14060i199607-199808

main09120-14070i199305-199607

09150WRENCH, HUB NUT BOX

main09150-26010i199305-199607

main09150-40010i199607-199808

09168WRENCH, ROOF PANEL

main09168-14010i199305-199808

09169HANDLE, ROOF PANEL

main09169-14010i199305-199808

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

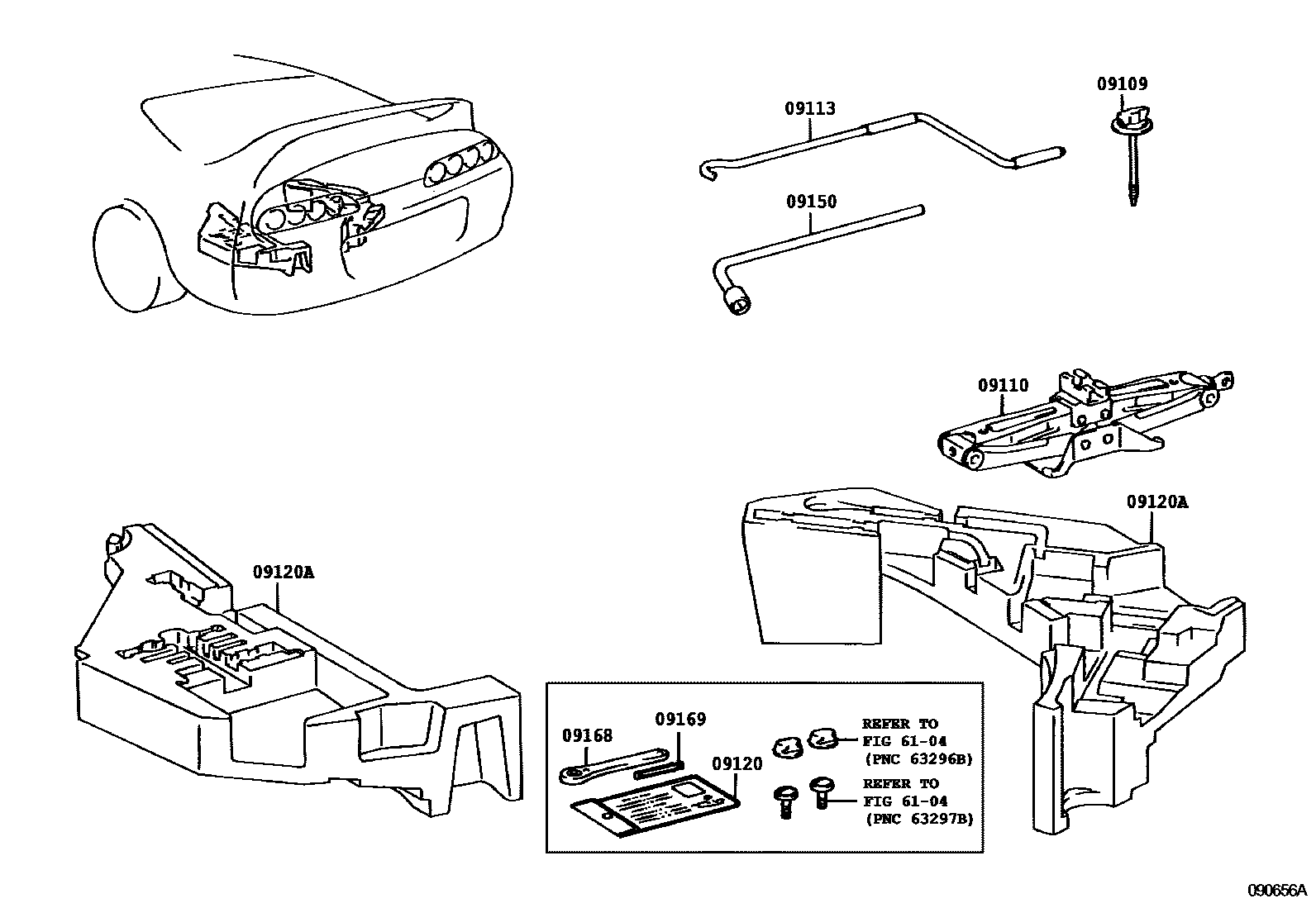

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: BOLT SUB-ASSY, JACK HOLDER, JACK ASSY, HANDLE, JACK, BAG, TOOL, CASE, TOOL.
