Toyota SUPRA — STANDARD TOOL

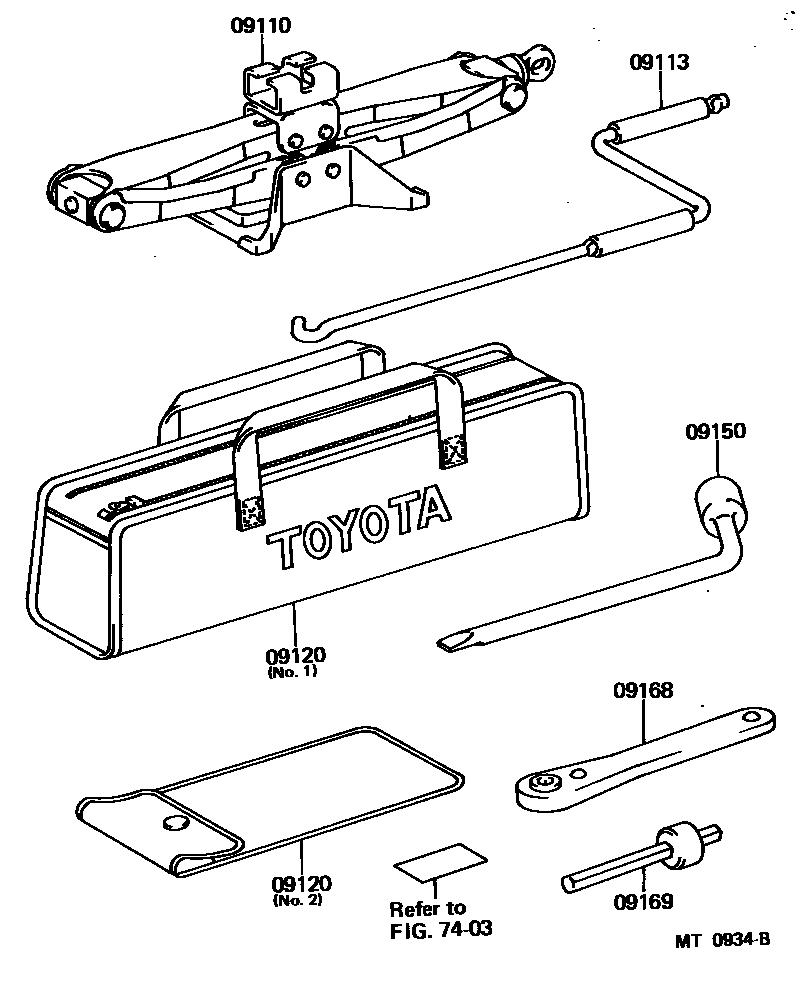

Parts diagram
09110JACK ASSY
main09111-24030i198601-198808
09113HANDLE, JACK
main09113-24020i198601-198808
09120BAG, TOOL
main09120-14010i198610-198707
NO.2
main09120-14011i198707-198808
NO.2
main09120-14020i198601-198808
NO.1
main09120-14030i198604-198610
NO.2
09150WRENCH, HUB NUT BOX
main09150-40010i198601-198808
09168WRENCH, ROOF PANEL
main09168-14010i198604-198808
09169HANDLE, ROOF PANEL
main09169-14010i198604-198808
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03

7 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SUPRA

This section contains 7 genuine Toyota parts for the STANDARD TOOL system of the Toyota SUPRA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, WRENCH, HUB NUT BOX, WRENCH, ROOF PANEL.
