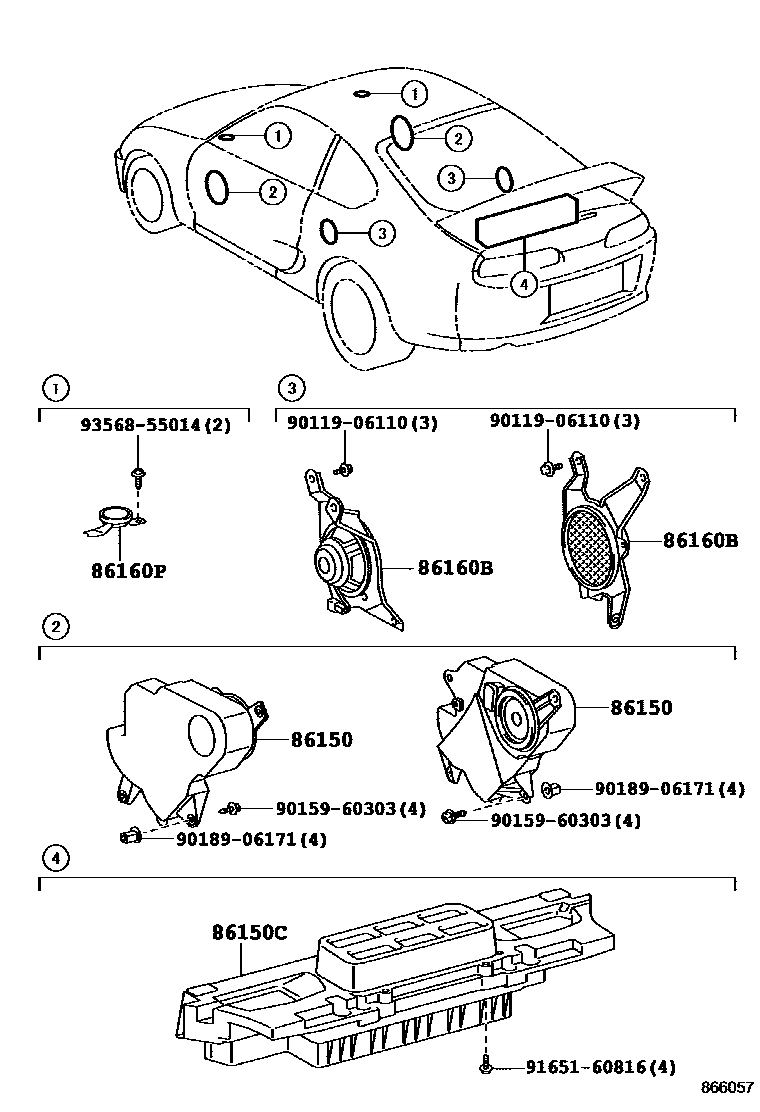

Toyota SUPRA — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-14120i199305-199508

main86150-14121i199607-199808

main86150-14130i199305-199508

main86150-14131i199607-199808

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-14160i199305-199508

86160BSPEAKER ASSY, REAR

main86150-14140i199305-199508

RADIO---W(*DSP),RH

main86150-14150i199305-199508

RADIO---W(*DSP),LH

main86160-14340i199305-199607

main86160-14350i199607-199709

main86160-14360i199508-199607

RADIO---W(*DSP),RH

main86160-14370i199607-199808

RADIO---W(*DSP),LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-14330×2i199305-199808

9011906110

main90119-06110

9015960303

main90159-60303

9018906171

main90189-06171

9165160816

main91651-60816

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota SUPRA

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota SUPRA. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, W/BOX, NO.3, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
