Toyota SUPRA — SEAT BELT & CHILD RESTRAINT SEAT

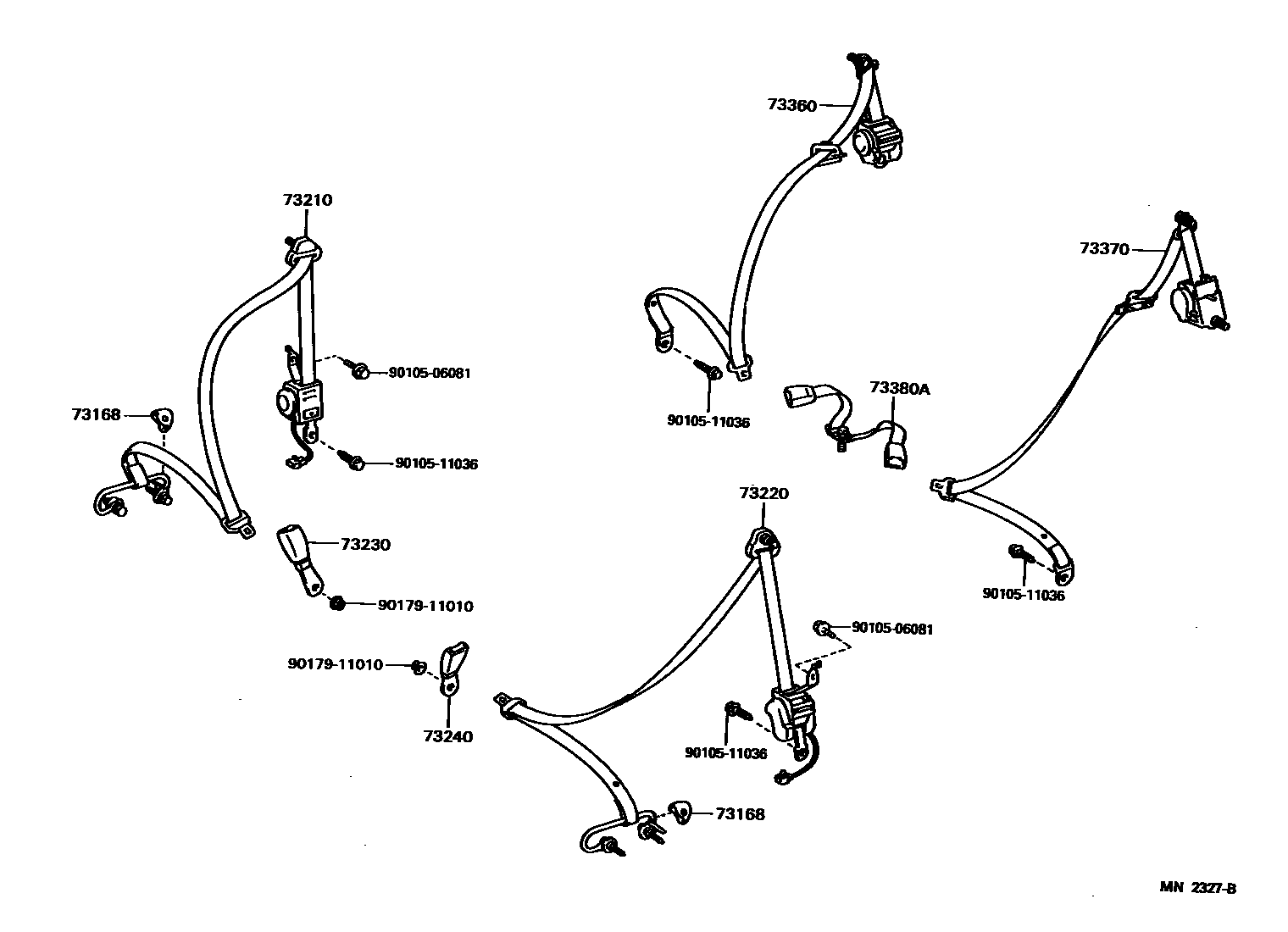

Parts diagram
73168STOPPER FRONT SEAT BELT LAP ANCHOR
main73168-14010-C0×2i199305-199408
NORWAY SPEC,BLACK,TRIM2#
main73168-14010-C1×2i199305-199508
NORWAY SPEC,BLACK,TRIM0#,2#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-14560-C0i199305-199312
BLACK,TRIM0#,2#
main73210-14561-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-14500-C0i199305-199312
BLACK,TRIM0#,2#
main73220-14501-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-14490-C0i199305-199605
BLACK,TRIM0#,2#
main73230-14500-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-14490-C0i199305-199605
BLACK,TRIM0#,2#
main73230-14500-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-14310-C0i199305-199312
BLACK,TRIM0#,2#
main73360-14311-C0i199312-199408
BLACK,TRIM0#; BLACK,TRIM0#,2#
main73360-14312-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-14190-C0i199305-199312
BLACK,TRIM0#,2#
main73370-14191-C0i199312-199508
BLACK,TRIM0#,2#
main73370-14192-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
73380ABELT ASSY, REAR SEAT, INNER
main73380-14210-C0i199305-199508
BLACK,TRIM0#,2#
main73380-14211-C0i199508-199605
BLACK,TRIM0#,2#; BLACK,TRIM2#
9010506081
main90105-06081
9010511036
main90105-11036
9017911010
main90179-11010

11 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota SUPRA

This section contains 11 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota SUPRA. Key components include: STOPPER FRONT SEAT BELT LAP ANCHOR, BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH, BELT ASSY, FRONT SEAT INNER, LH.
