Toyota SUPRA — METER

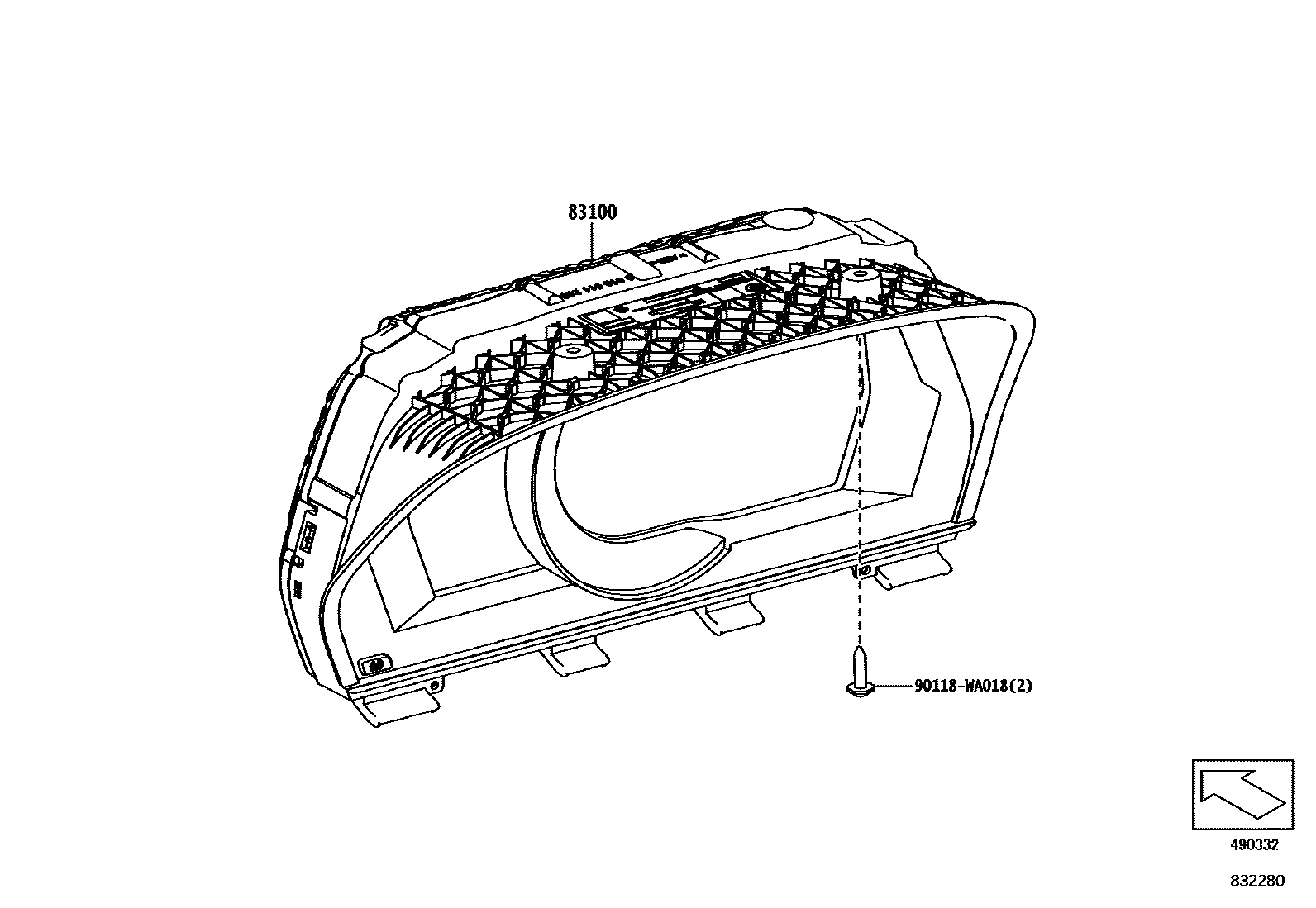

Parts diagram

83100METER ASSY, COMBINATION

main83800-WAA07i201903-201911

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA08i201903-201911

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA10i201912-202002

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA11i201912-202002

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA13i202003-202007

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA14i202003-202007

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

main83800-WAA19i202003-202103

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA20i202003-202103

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA21i201903-202103

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA22i202104-202107

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA23i202104-202107

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA24i202104-202107

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA25i202108-202207

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA26i202108-202207

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA27i202108-202207

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA28i202208-202307

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA29i202208-202307

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA30i202208-202307

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA34i202308-202311

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA35i202308-202311

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA36i202308-202311

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA37i202312

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA); HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

main83800-WAA38i202312

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

main83800-WAA39i202312

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

90118WA018

main90118-WA018

2 parts on this diagram · 2 diagrams in section

METER for Toyota SUPRA

This section contains 4 genuine Toyota parts for the METER system of the Toyota SUPRA. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER.
