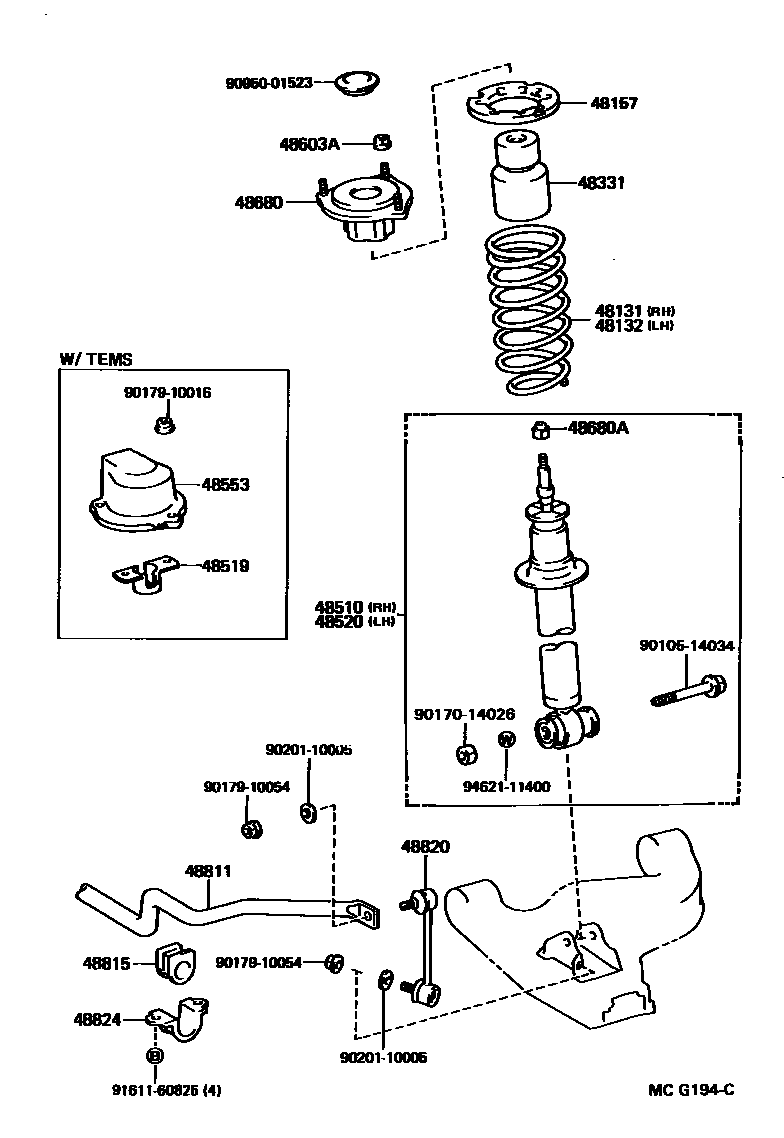

Toyota SUPRA — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
W(TEMS)
W(TEMS)
48519BRACKET, ACTUATOR SUPPORT, FRONT
48520ABSORBER ASSY, SHOCK, FRONT LH
W(TEMS)
W(TEMS)
48553CAP, SHOCK ABSORBER, UPPER
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48815BUSH, FRONT STABILIZER BAR, NO.1
48824BRACKET, STABILIZER, FRONT
9010514034
main90105-14034
9017014026
main90170-14026
9017910016
main90179-10016
9017910054
main90179-10054
9020110005
main90201-10005
9095001523
main90950-01523
9161160825
main91611-60825
9462111400
main94621-11400
23 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota SUPRA
This section contains 23 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota SUPRA. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER, BUMPER, FRONT SPRING, NO.1, ABSORBER ASSY, SHOCK, FRONT RH.
