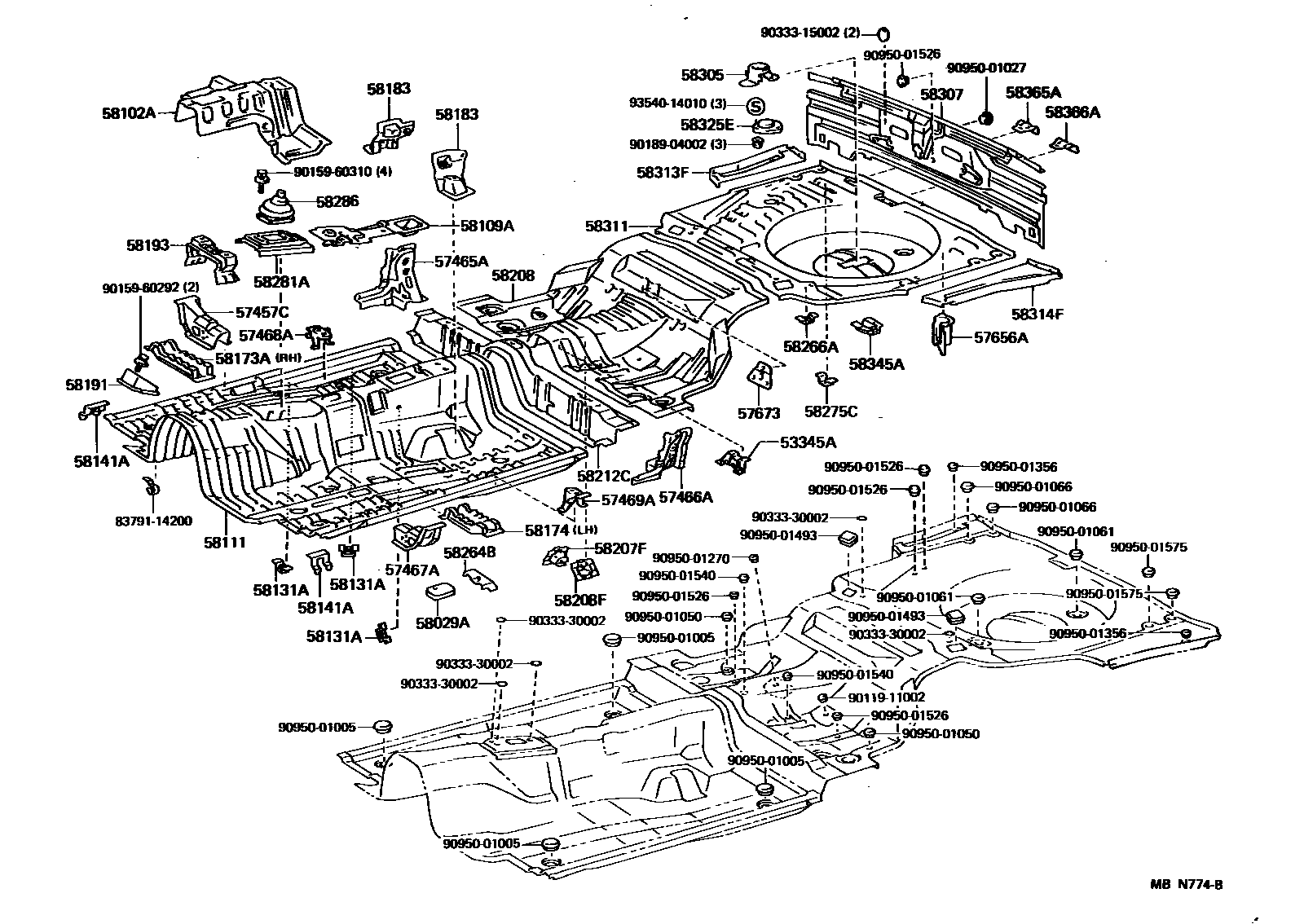

Toyota SUPRA — FLOOR PAN & LOWER BACK PANEL

53345ABRACKET, AIR DEFLECTOR, NO.2 RH

main53345-14010iMA70..TWT..C198908-199305

57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH

main57457-14010iMA70198808-199305

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-14060iMA70198808-199305

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-14030iMA70198808-199305

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-14020iMA70198808-199305

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-14030iMA70198808-199305

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-14030iMA70198808-199305

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-14040iMA70198808-199305

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-14020iMA70198808-199305

58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP

main58029-14020iMA70..ARL,C,EUR,GEN198808-199305

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-14020iMA70..V198808-198908

main58102-14021iMA70..V198908-199305

58109ARETAINER SUB-ASSY, PARKING BRAKE

main58109-14010iMA70..RHD198808-199305

main58109-14020iMA70..LHD198808-199305

58111PAN, FRONT FLOOR

main58111-14060iMA70198808-198908

sub90189-05102

main58111-14061iMA70198908-199305

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-14030×2iMA70..ARL,C,EUR,GEN198808-199305

58141APROTECTOR, FRONT FLOOR SERVICE HOLE, NO.1

main58141-14020×2iMA70198808-199305

58173ADEFLECTOR, FRONT FLOOR STONE, RH

main58173-14020iMA70198808-199305

58174DEFLECTOR, FRONT FLOOR STONE, LH

main58174-14010iMA70198808-199305

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-14030iMA70..ARL,C,EUR,GEN198808-199305

RH

main58184-14030iMA70..ARL,C,EUR,GEN198808-199305

LH

58191FOOTREST, FRONT FLOOR

main58191-14050iMA70..RHD198808-199305

main58192-14030iMA70..LHD198808-199305

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-14030iMA70198808-199305

58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH

main58207-14040iMA70198808-199305

58208PAN, CENTER FLOOR

main58211-14120iMA70198808-199305

58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH

main58208-14040iMA70198808-199305

58212CPAN, CENTER FLOOR, FRONT

main58212-14020iMA70198808-199305

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-14020iMA70198808-199305

58266ABRACKET, FUEL TUBE CLAMP

main58266-14050×2iMA70199108-199305

main58266-22040×2iMA70198808-199108

58275CBRACKET, WIRE HARNESS PROTECTOR

main58275-14020×2iMA70198808-199305

58281ACOVER, TRANSMISSION AUXILIARY

main58281-14100iMA70..5F198808-199305

main58281-14130iMA70..RHD..4FC198808-199305

main58281-14140iMA70..LHD..4FC198808-199305

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-14070iMA70..5F198808-199305

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iMA70198808-199305

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-14650iMA70..ARL198808-199305

main58307-14670iMA70..C,EUR,GEN198808-199305

main58307-14680iMA70..GEN198808-199305

W(*LPL=SIDE)

main58307-14700iMA70..V198808-199305

58311PAN, REAR FLOOR

main58311-14170iMA70198808-199108

main58311-14171iMA70199108-199305

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-14190iMA70198808-199305

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-14130iMA70198808-199305

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-14020iMA70198808-199305

58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-14020iMA70198808-199305

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-14010iMA70198808-199305

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-14010iMA70198808-199305

8379114200

main83791-14200

9011911002

main90119-11002

9015960292

main90159-60292

9015960310

main90159-60310

9018904002

main90189-04002

9033315002

main90333-15002

9033330002

main90333-30002

9095001005

main90950-01005

9095001027

main90950-01027

9095001050

main90950-01050

9095001061

main90950-01061

9095001066

main90950-01066

9095001270

main90950-01270

9095001356

main90950-01356

9095001493

main90950-01493

9095001526

main90950-01526

9095001540

main90950-01540

9095001575

main90950-01575

9354014010

main93540-14010

57 parts on this diagram · 1 diagram in section
