Toyota SUPRA — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-42040i198601-198808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-70011i198601-198808

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-43110i198601-198808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i198601-198808

main90099-14088i198608-198808

19114COVER, WATER PROOF(FOR DISTRIBUTOR)

main19114-42010i198601-198808

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198601-198808

19127PACKING, DUST PROOF

main19127-42010i198608-198808

main19127-52020i198601-198808

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-42010i198608-198808

main19195-42040i198601-198808

19225CAP, RUBBER

main19225-41140i198601-198808

9009904566

main90099-04566

9165140825

main91651-40825

11 parts on this diagram · 2 diagrams in section

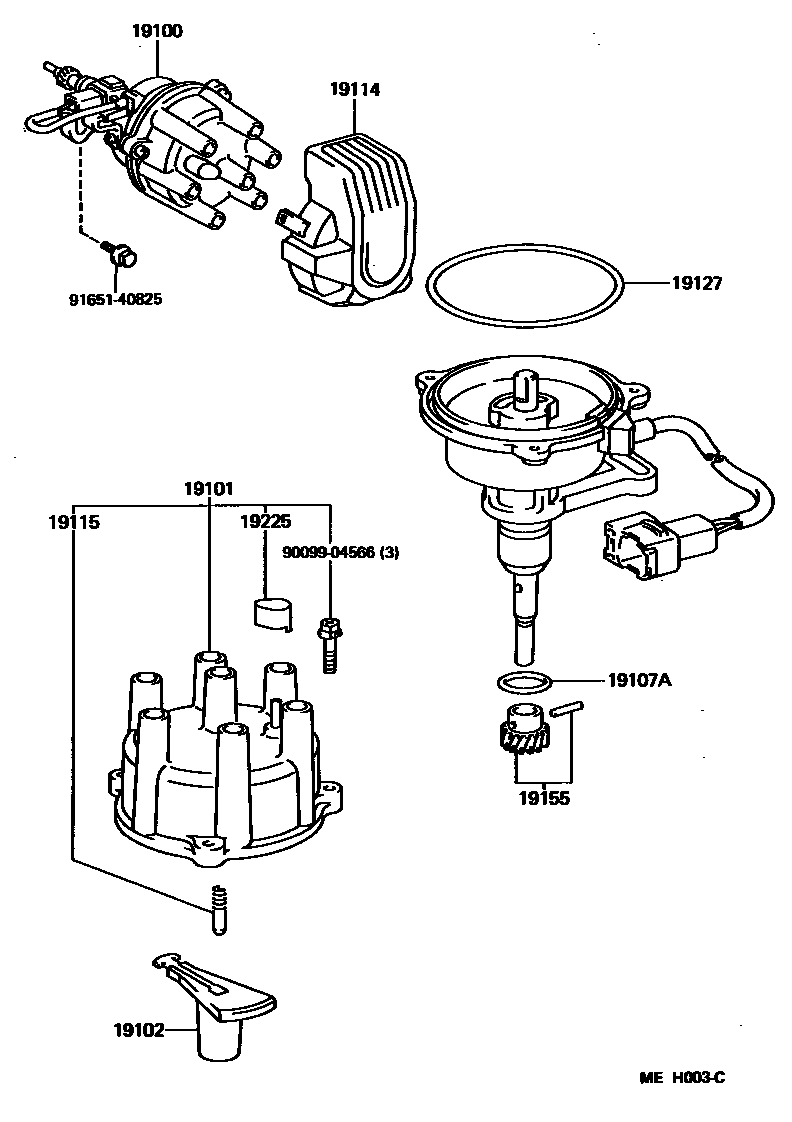

DISTRIBUTOR for Toyota SUPRA

This section contains 17 genuine Toyota parts for the DISTRIBUTOR system of the Toyota SUPRA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, COVER, WATER PROOF(FOR DISTRIBUTOR).
