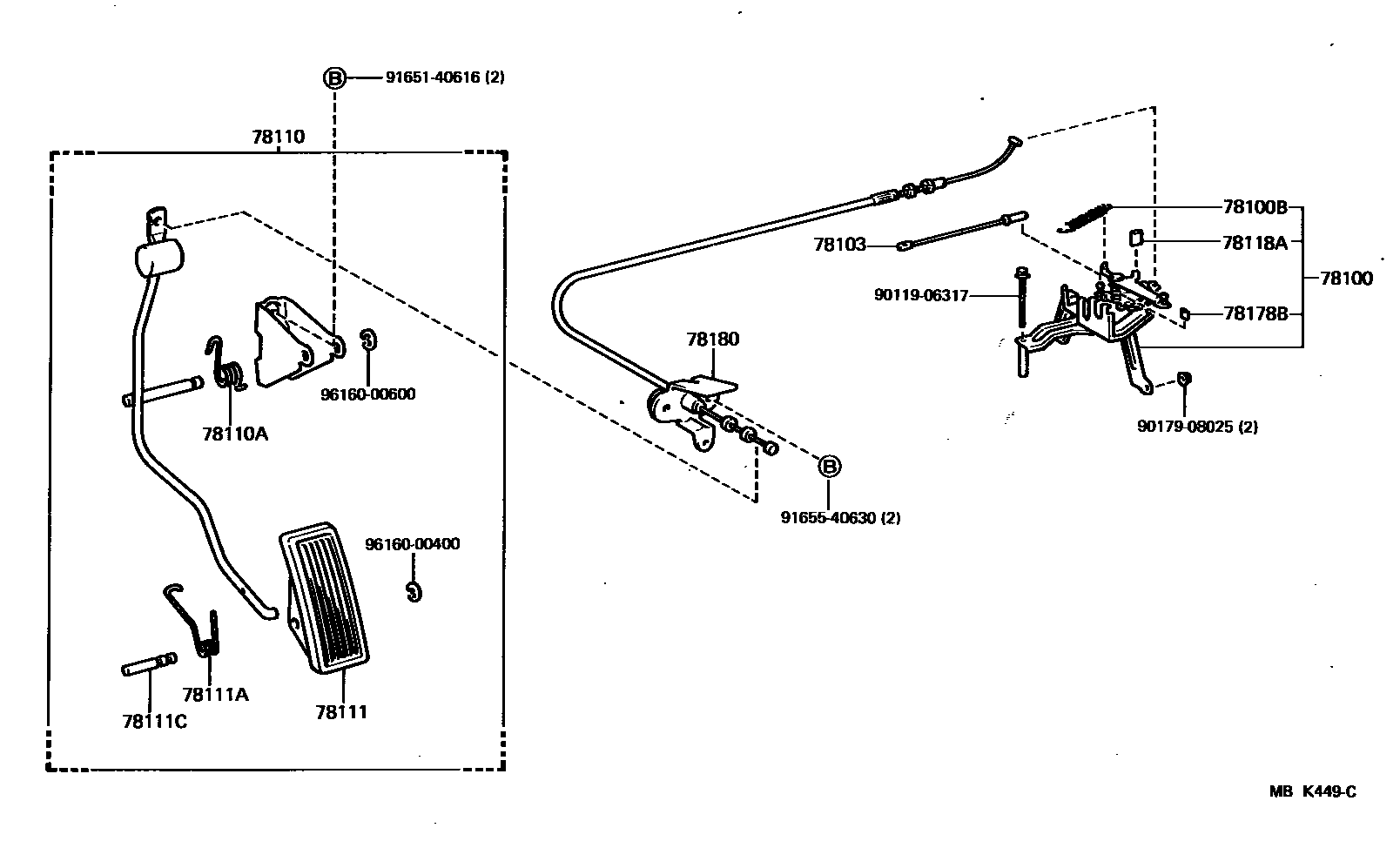

Toyota SUPRA — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-14080iMA70..4FC..TWT198608-198702

sub90179-08038

main78100-14081iMA70..4FC..TWT198702-198808

main78100-14090iMA70..5F..TWT198608-198702

sub90179-08038

main78100-14091iMA70..5F..TWT198702-198808

main78100-14100iMA70..TWC198601-198607

main78100-14101iMA70..TWC198607-198808

78100BSPRING (FOR ACCELERATOR LINK)

main90507-09001iMA70198601-198808

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-14210iMA70..4FC198601-198607

main78103-14211iMA70..4FC198607-198808

main78103-14220iMA70..TWT198608-198610

main78103-14230iMA70..5F198601-198808

main78103-14240iMA70..4FC..TWT198610-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14480iMA70198601-198803

main78120-14481iMA70198803-198808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iMA70198601-198808

78111PEDAL, ACCELERATOR

main78111-12100iMA70198601-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iMA70198601-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iMA70198601-198808

78118ASTOPPER, ACCELERATOR PEDAL

main78118-12010iMA70198601-198808

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010×2iMA70198601-198808

78180WIRE ASSY, ACCELERATOR

main78180-1B040iMA70..TWC198601-198607

main78180-1B041iMA70..TWC198607-198808

main78180-1B050iMA70..TWT198608-198808

9011906317

main90119-06317

9017908025

main90179-08025

9165140616

main91651-40616

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
