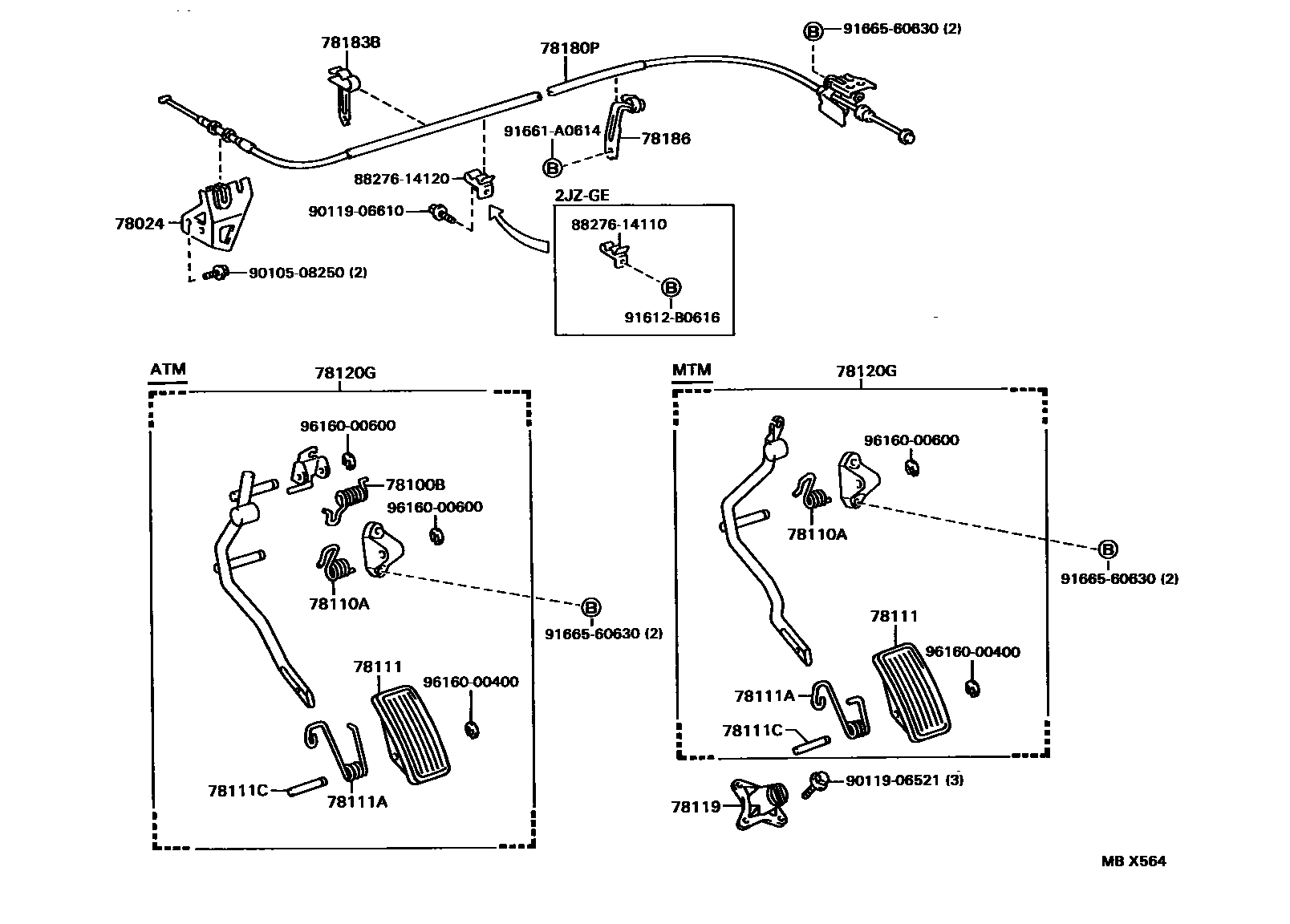

Toyota SUPRA — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14140iJZA80..EUR199305-199601

main78024-24020iJZA80..LHD..5F199305-199605

main78024-24030iJZA80..4FC..GCC199408-199512

main78024-24031iJZA80..4FC..GCC199512-199605

78100BSPRING (FOR ACCELERATOR LINK)

main90508-29022iJZA80..4FC199305-199605

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23076iJZA80199305-199605

78111PEDAL, ACCELERATOR

main78111-12100iJZA80199305-199605

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iJZA80..4FC199305-199605

main90508-23121iJZA80..MTM199305-199605

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZA80199305-199605

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-24010iJZA80..RHD..MTM199305-199601

main78119-24020iJZA80..LHD..MTM199305-199605

78120GROD ASSY, ACCELERATOR PEDAL

main78120-14450iJZA80..RHD..4FC199305-199601

main78120-14460iJZA80..RHD..MTM199305-199601

main78120-14500iJZA80..LHD..4FC199305-199605

main78120-14510iJZA80..LHD..MTM199305-199605

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1B080iJZA80..RHD..EUR199305-199601

main78180-1B090iJZA80..LHD..EUR199305-199601

main78180-1B100iJZA80..RHD..GEN199305-199408

main78180-24070iJZA80..LHD..5F199305-199605

main78180-24130iJZA80..4FC..GCC199408-199605

sub78180-24131

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-14030iJZA80..RHD..EUR199305-199601

main78183-24030iJZA80..LHD..(GCC,GEN)199305-199605

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-22100iJZA80..RHD..EUR199305-199601

8827614110

main88276-14110

8827614120

main88276-14120

9010508250

main90105-08250

9011906521

main90119-06521

9011906610

main90119-06610

91612B0616

main91612-B0616

91661A0614

main91661-A0614

9166560630

main91665-60630

9616000400

main96160-00400

9616000600

main96160-00600

21 parts on this diagram · 2 diagrams in section
