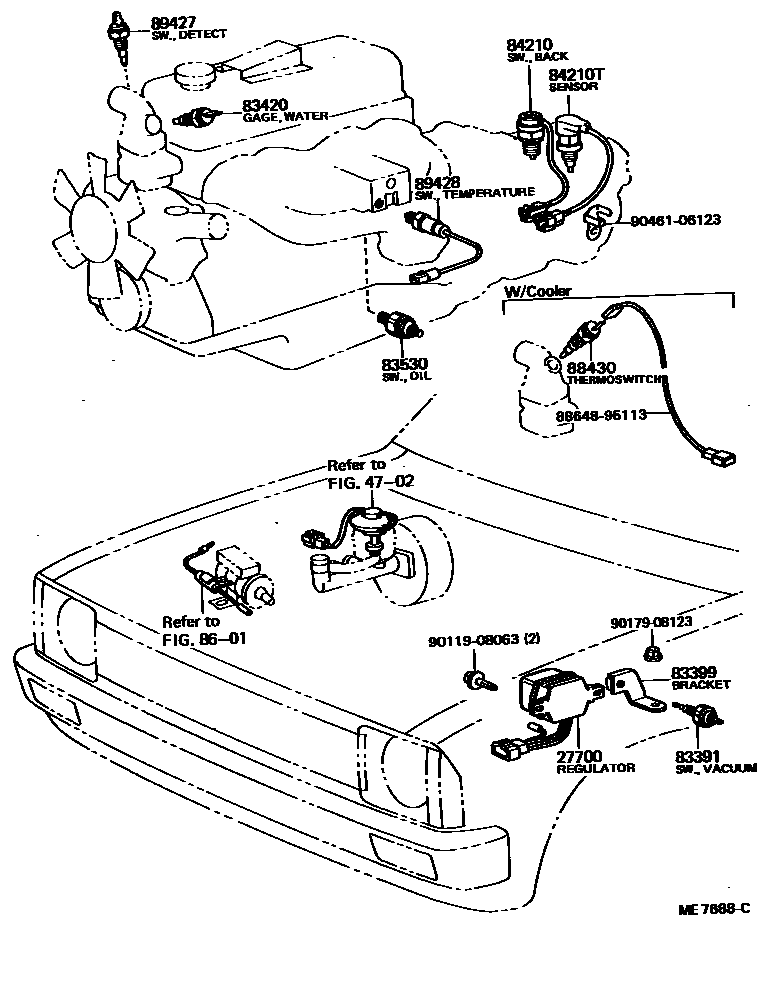

Toyota STOUT — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-13010i5R..RK110197903-198108

sub27700-36020

main27700-13050i5R..RK11#198108-198603

4702

83391SWITCH, VACUUM

main83391-25010iRK110197903-198201

83399BRACKET, VACUUM SWITCH

main83399-22011iRK110197903-198201

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iRK11#197912-198603

DENSO

main83420-20011iRK110197903-197912

main83420-20020iRK11#197912-198603

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRK11#198108-198502

main83530-14030iRK111198502-198603

sub83530-28030

main83530-30030iRK110197903-198108

84210SWITCH ASSY, BACK-UP LAMP

main84210-25020iRK11#197903-198603

84210TSENSOR ASSY, SHIFT POINT

main84220-35050iRK110197903-198201

8601

88430THERMOSWITCH ASSY, AIR CONDITIONER

main88430-96440iRK111198201-198603

sub83430-96440

89427SWITCH, TEMPERATURE DETECT

main89428-14010iRK110197903-198201

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-25010iRK110197903-198201

8864895113WIRING, COOLER, NO.1

main88648-95113

9011908063

main90119-08063

9017908123

main90179-08123

9046106123

main90461-06123

16 parts on this diagram · 4 diagrams in section
