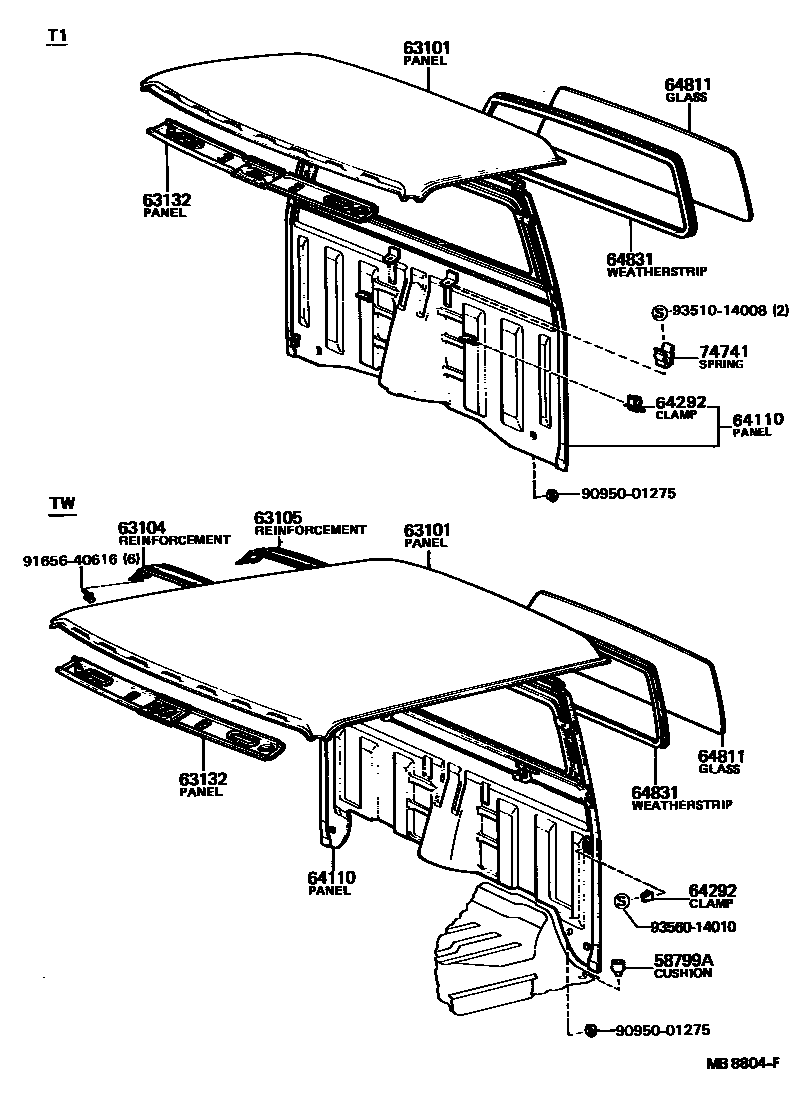

Toyota STOUT — ROOF PANEL & BACK PANEL

58799ACUSHION, JACK HANDLE

main58799-89101iRK11#..TW197903-198507

63101PANEL SUB-ASSY, ROOF

main63111-89105iRK11#..T1197903-198603

main63111-89107iRK11#..TW197903-198507

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-89103iRK11#..TW197903-198507

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-89102iRK11#..TW197903-198507

63132PANEL, WINDSHIELD HEADER, INNER

main63102-89101iRK11#197903-198603

64110PANEL ASSY, FRONT BODY BACK

main64101-95113iRK11#..TW197903-198507

main64101-95114iRK11#..T1197903-198603

64292CLAMP, JACK HANDLE

main58706-89101×2iRK11#..T1197903-198603

main64292-89102iRK11#..TW197903-198507

64811GLASS, BACK WINDOW

main64811-89107iRK11#197903-198603

*TEM,T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-89101iRK11#197903-198603

74741SPRING, STARTING HANDLE SUPPORT

main74716-95660×2iRK11#..175197906-198507

main74741-95112×2iRK11#..20T197906-198603

9095001275

main90950-01275

9165640616

main91656-40616

9351014008

main93510-14008

9356014010

main93560-14010

14 parts on this diagram · 1 diagram in section
