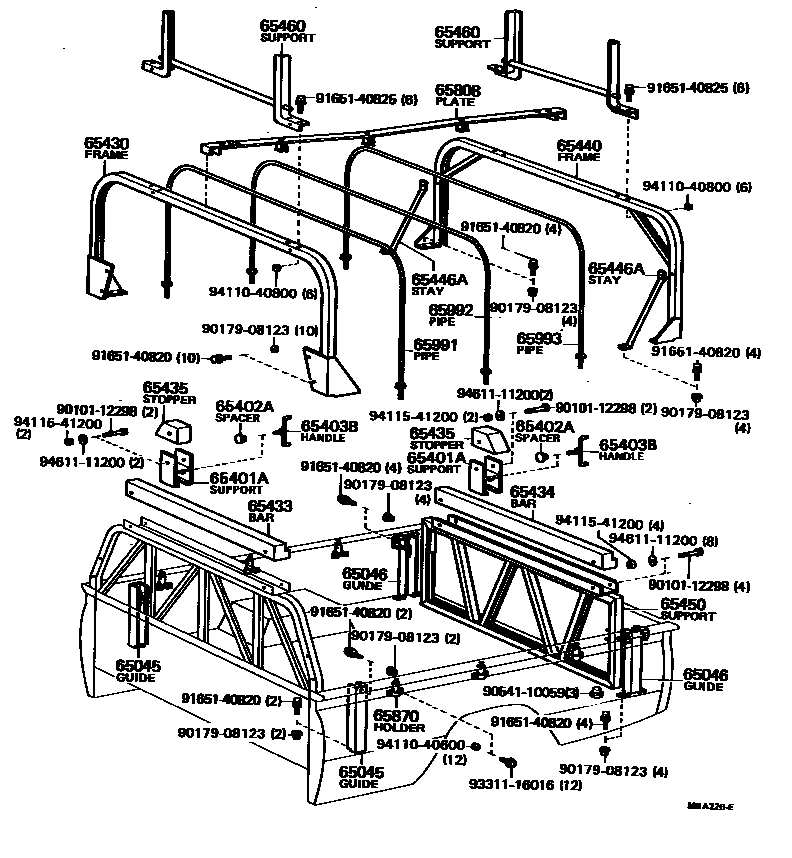

Toyota STOUT — REAR BODY TOP CURTAIN & ROOF PANEL
65045GUIDE SUB-ASSY, FRONT
65046GUIDE SUB-ASSY, REAR
65401ASUPPORT SUB-ASSY, TELEGRAPH POLE STOPPER
FR
65402ASPACER SUB-ASSY, TELEGRAPH POLE STOPPER
65403BHANDLE ASSY, TELEGRAPH POLE STOPPER
65430FRAME ASSY, TOP & CURTAIN SUPPORT, FRONT
65433BAR, GUARD FRAME, NO.1
65434BAR, GUARD FRAME, NO.2
65435STOPPER, TELEGRAPH POLE STOPPER
65440FRAME ASSY, TOP & CURTAIN SUPPORT, REAR
65446ASTAY, TOP & CURTAIN SUPPORT FRAME
65450SUPPORT ASSY, TELEGRAPH POLE
65460SUPPORT ASSY, LADDER
65808PLATE SUB-ASSY, TOP BOW
65870HOLDER ASSY, VINYL TOP BOW
65991PIPE, VINYL TOP GUARD, NO.1
65992PIPE, VINYL TOP GUARD, NO.2
65993PIPE, VINYL TOP GUARD, NO.3
9010112298
main90101-12298
9017908123
main90179-08123
9054110059
main90541-10059
9165140820
main91651-40820
9165140825
main91651-40825
9331116016
main93311-16016
9411040600
main94110-40600
9411040800
main94110-40800
9411541200
main94115-41200
9461111200
main94611-11200
28 parts on this diagram · 3 diagrams in section
REAR BODY TOP CURTAIN & ROOF PANEL for Toyota STOUT
This section contains 31 genuine Toyota parts for the REAR BODY TOP CURTAIN & ROOF PANEL system of the Toyota STOUT. Key components include: GUIDE SUB-ASSY, FRONT, GUIDE SUB-ASSY, REAR, SUPPORT SUB-ASSY, TELEGRAPH POLE STOPPER, SPACER SUB-ASSY, TELEGRAPH POLE STOPPER, HANDLE ASSY, TELEGRAPH POLE STOPPER.
