Toyota STOUT — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-89104-03i197903-198103

GRAY,GRAY

main87810-89104-04i197903-198103

BLUE,BLUE

main87810-89107-03i197903-198103

GRAY,GRAY

main87810-89107-04i197903-198103

BLUE,BLUE

main87810-89110-03i198103-198108

GRAY,GRAY

main87810-89110-04i198103-198108

BLUE,BLUE

main87810-89112-03i198103-198507

GRAY,GRAY

main87810-89112-04i198103-198507

BLUE,BLUE

main87810-89112-05i198308-198603

BEIGE,BEIGE

main87810-89116-03i198108-198603

GRAY,GRAY

main87810-89116-04i198108-198603

BLUE,BLUE

main87810-89116-05i198308-198603

BEIGE,BEIGE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050i197903-198603

87831SPACER (FOR INSIDE MIRROR)

main87831-95010i197903-198603

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12020i197903-198603

main87834-89101-03i197903-198507

GRAY,GRAY

main87834-89101-04i197903-198507

BLUE,BLUE

main87834-89101-05i198308-198603

BEIGE,BEIGE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-39165i197903-198603

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-39125i197903-198603

9015250017

main90152-50017

9017908123

main90179-08123

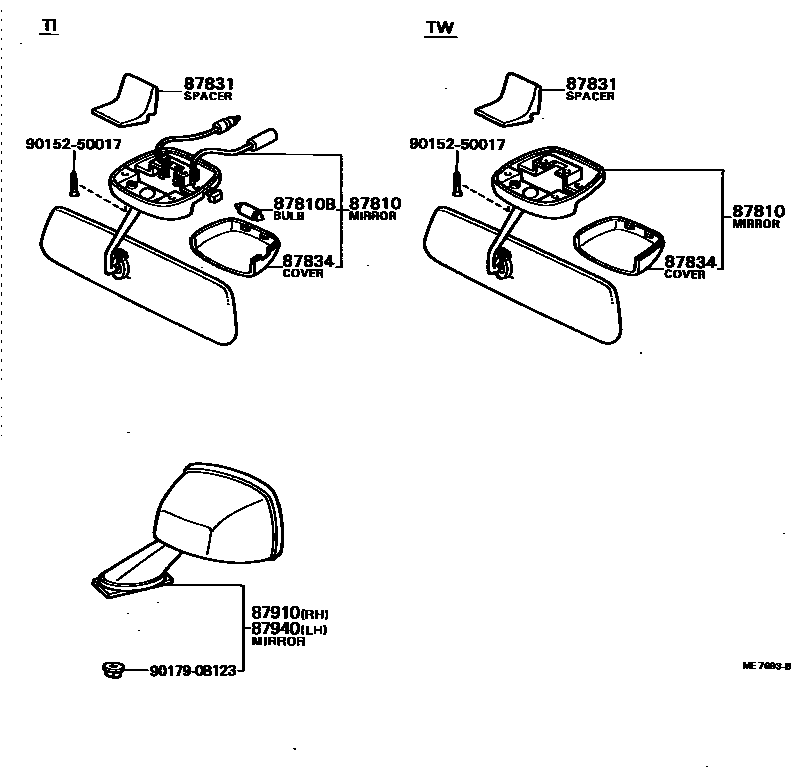

8 parts on this diagram · 1 diagram in section

MIRROR for Toyota STOUT

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota STOUT. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, SPACER (FOR INSIDE MIRROR), COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
