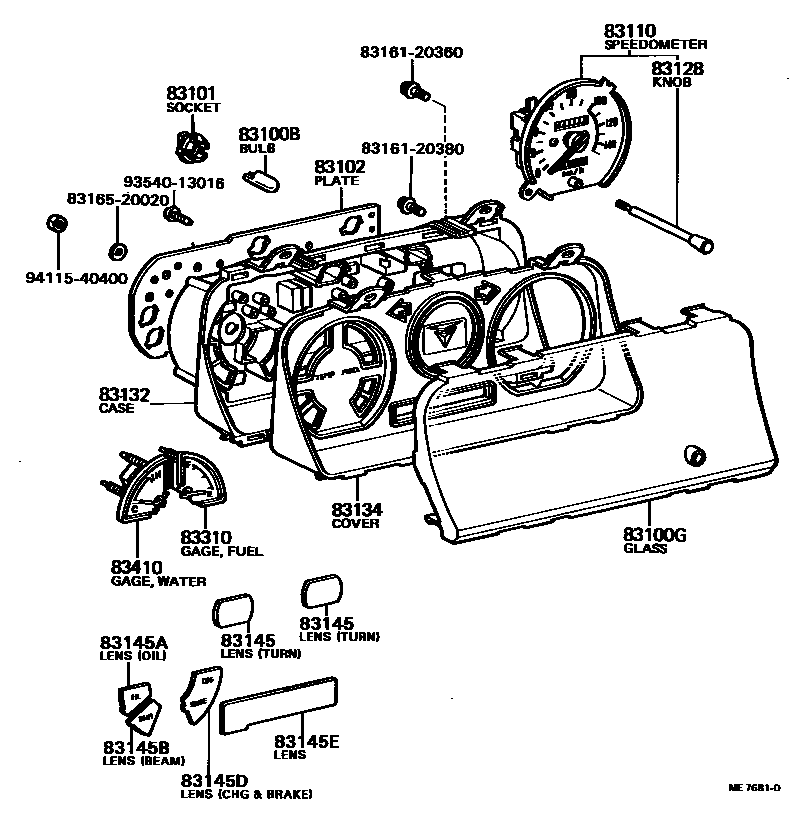

Toyota STOUT — METER

83100BBULB, COMBINATION METER, NO.1

main99132-12034×9i197903-198603

83100GGLASS, COMBINATION METER

main83138-89130i197903-198201

main83138-89267i198201-198603

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×9i197903-198603

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-89130i197903-198201

main83247-89215i198201-198603

83110SPEEDOMETER ASSY

main83110-89130i197903-198201

main83110-89176i198201-198603

83128KNOB, TRIP COUNTER

main83128-89130i197903-198603

83132CASE, COMBINATION METER

main83132-89130i197903-198201

main83132-89251i198201-198603

83134COVER, COMBINATION METER, NO.1

main83134-89130i197903-198008

main83134-89204i198008-198201

main83134-89251i198201-198603

83145LENS, METER, NO.1

main83145-89114×2i197903-198201

TURN

main83145-89245×2i198201-198603

TURN

83145ALENS, METER, NO.2

main83145-89113i197903-198008

OIL

main83145-89212i198008-198201

OIL

main83145-89227i198201-198603

83145BLENS, METER, NO.3

main83145-89112i197903-198008

BEAM

main83145-89213i198008-198201

BEAM

main83145-89233i198201-198603

BLIND

83145DLENS, METER, NO.5

main83145-89111i197903-198008

CHG & BRAKE

main83145-89218i198008-198201

CHG & BRAKE

83145ELENS, METER, NO.6

main83145-89119i197903-198201

MEKURA

83310GAGE ASSY, FUEL RECEIVER

main83243-89210i198201-198603

main83310-89130i197903-198201

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-89210i198201-198603

main83410-89130i197903-197912

main83410-89173i197912-198201

8316120360CASE, COMBINATION METER MIRROR, NO.1

main83161-20360

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

9354013016

main93540-13016

9411540400

main94115-40400

20 parts on this diagram · 3 diagrams in section

METER for Toyota STOUT

This section contains 29 genuine Toyota parts for the METER system of the Toyota STOUT. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
