Toyota STOUT — INDICATOR

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-89106iRK110197903-198008

main81930-89108iRK110198008-198201

main81930-89110iRK111198201-198603

81930ALAMP ASSY, HEATER CONTROL INDICATOR, NO.2

main81930-89111iRK111198201-198603

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iRK111198201-198603

main90981-11018iRK11#197903-198603

81941PLATE, HEATER CONTROL NAME

main55519-89103iRK111198201-198603

main55519-89105iRK111198201-198603

W/COOLER

9018904042

main90189-04042

9354054014

main93540-54014

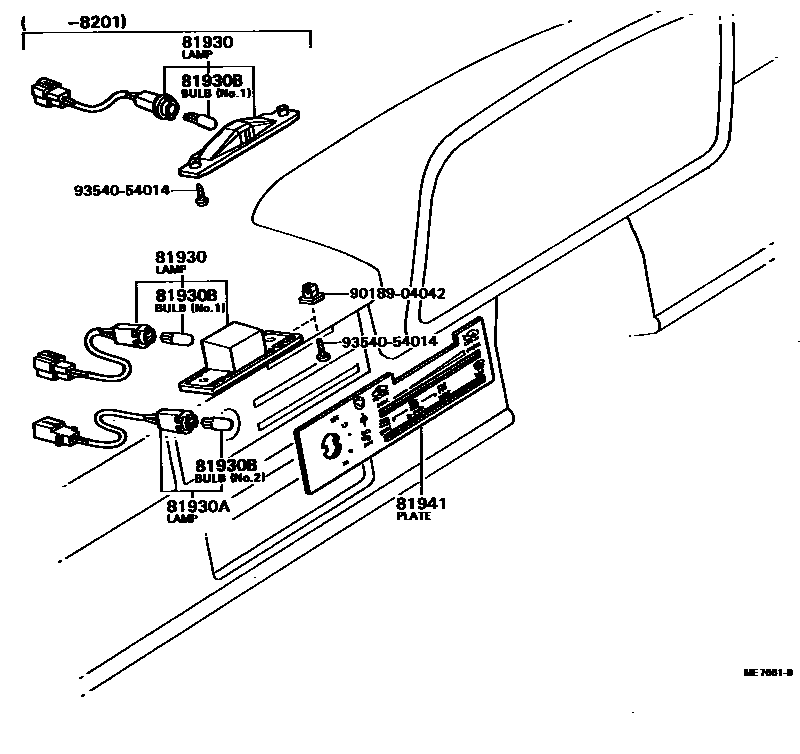

6 parts on this diagram · 1 diagram in section
