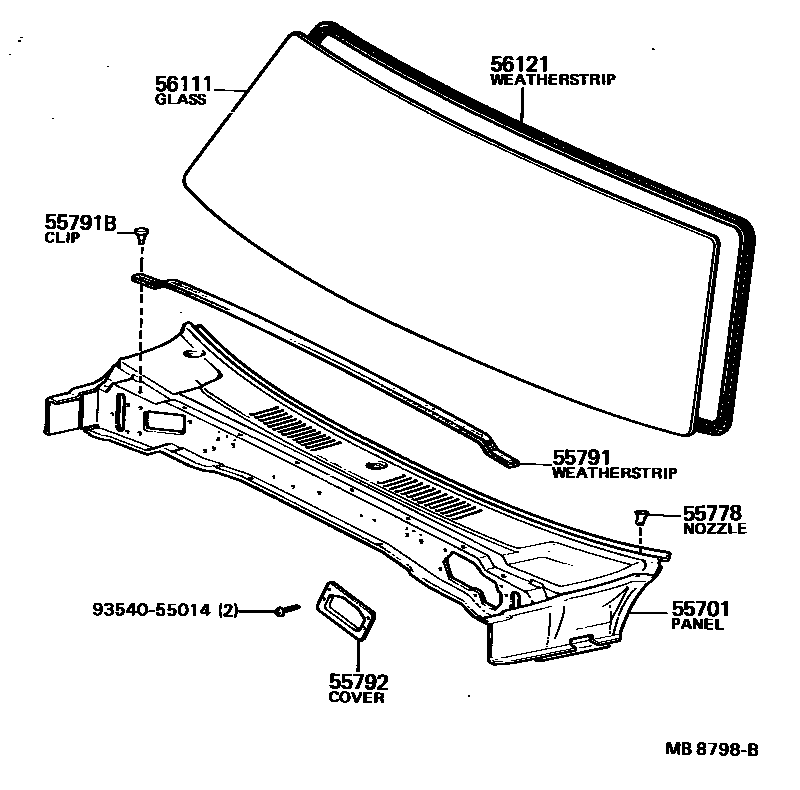

Toyota STOUT — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-95112i198102-198108

main55700-95118i198102-198108

main55700-95123i198108-198603

main55700-95124i198108-198507

55778NOZZLE, COWL WATER EXTRACT

main55798-89102×2i197903-198011

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-89104i197903-198603

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-08008×8i197903-198603

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-89105i197903-198603

56111GLASS, WINDSHIELD

main56111-89114i197903-198603

56121WEATHERSTRIP, WINDSHIELD

main56121-89111i197903-198011

main56121-89113i198011-198603

9354055014

main93540-55014

8 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota STOUT

This section contains 8 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota STOUT. Key components include: PANEL SUB-ASSY, COWL, NOZZLE, COWL WATER EXTRACT, WEATHERSTRIP, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP), COVER, WIPER MOTOR SERVICE HOLE.
