Toyota STOUT — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31201COVER SUB-ASSY, CLUTCH
31210COVER ASSY, CLUTCH
31216SPRING, CLUTCH RETRACTING
31221PLATE, CLUTCH PRESSURE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31232CLIP OR SPRING, RELEASE BEARING HUB
31236BALL, RELEASE FORK
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
6201 VV C3
9010108350
main90101-08350
9015960261
main90159-60261
9017008197
main90170-08197
9161160816
main91611-60816
9451200800
main94512-00800

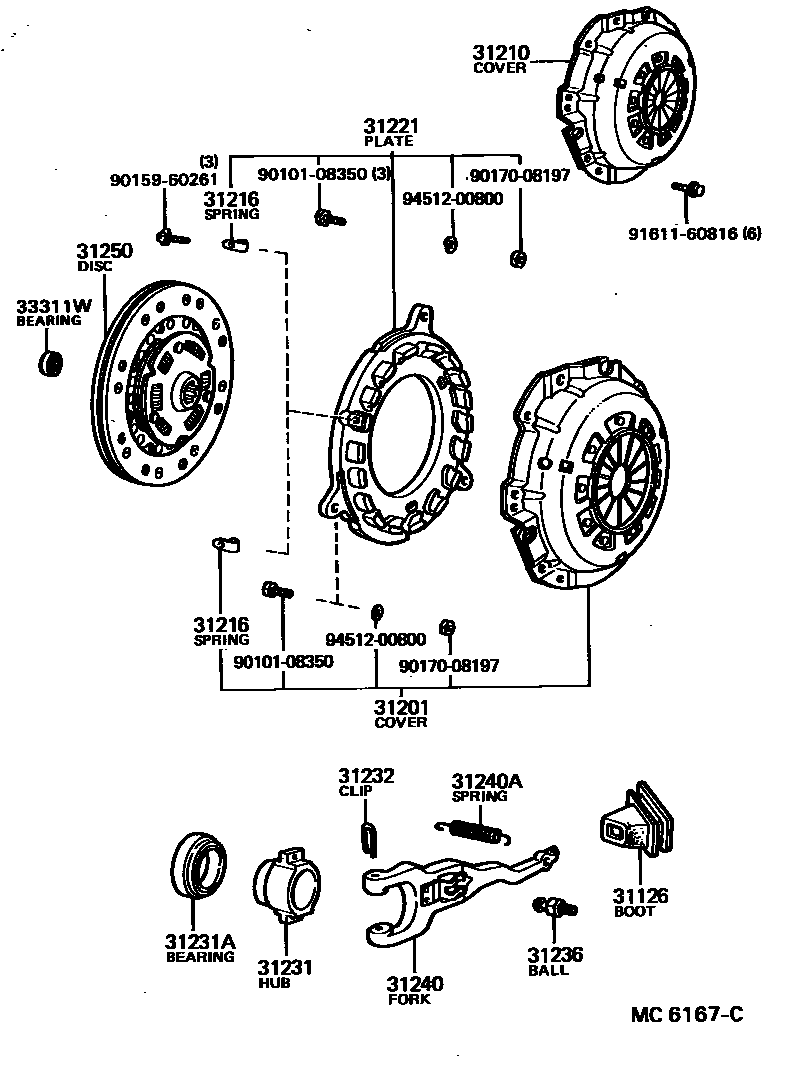

18 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota STOUT
This section contains 18 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota STOUT. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, COVER ASSY, CLUTCH, SPRING, CLUTCH RETRACTING, PLATE, CLUTCH PRESSURE.
