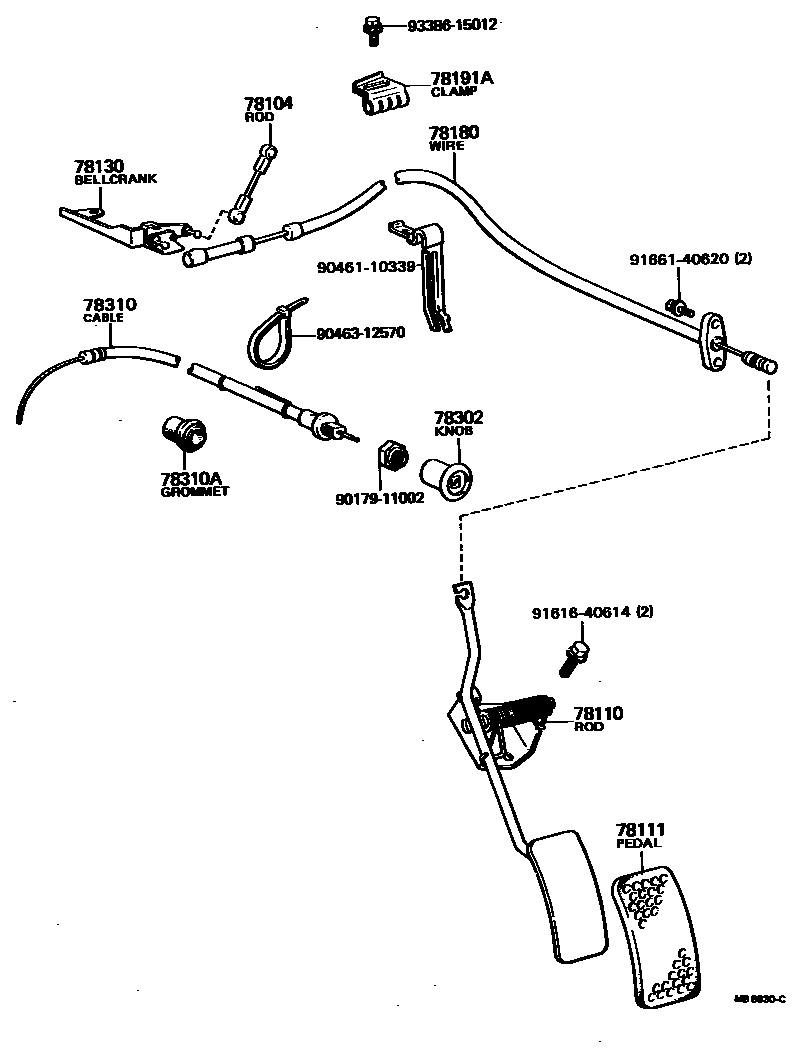

Toyota STOUT — ACCELERATOR LINK

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041i197903-198603

78110ROD ASSY, ACCELERATOR PEDAL

main78120-95120i197903-198603

78111PEDAL, ACCELERATOR

main78111-95110i197903-198603

78130BELLCRANK ASSY, ACCELERATOR

main78130-95111i197903-198603

78180WIRE ASSY, ACCELERATOR

main78180-95114i197903-198603

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-08240i197903-198603

78302KNOB SUB-ASSY, CHOKE ROD

main78311-89101i197903-198008

main78311-89102i198008-198603

78310CABLE ASSY, CHOKE

main78301-95110i197903-198603

78310AGROMMET, CHOKE CABLE

main90480-15001i197903-198603

9017911002

main90179-11002

9046110339

main90461-10339

9046312570

main90463-12570

9161640614

main91616-40614

9166140620

main91661-40620

9338615012

main93386-15012

15 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota STOUT

This section contains 15 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota STOUT. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD ASSY, ACCELERATOR PEDAL, PEDAL, ACCELERATOR, BELLCRANK ASSY, ACCELERATOR, WIRE ASSY, ACCELERATOR.
