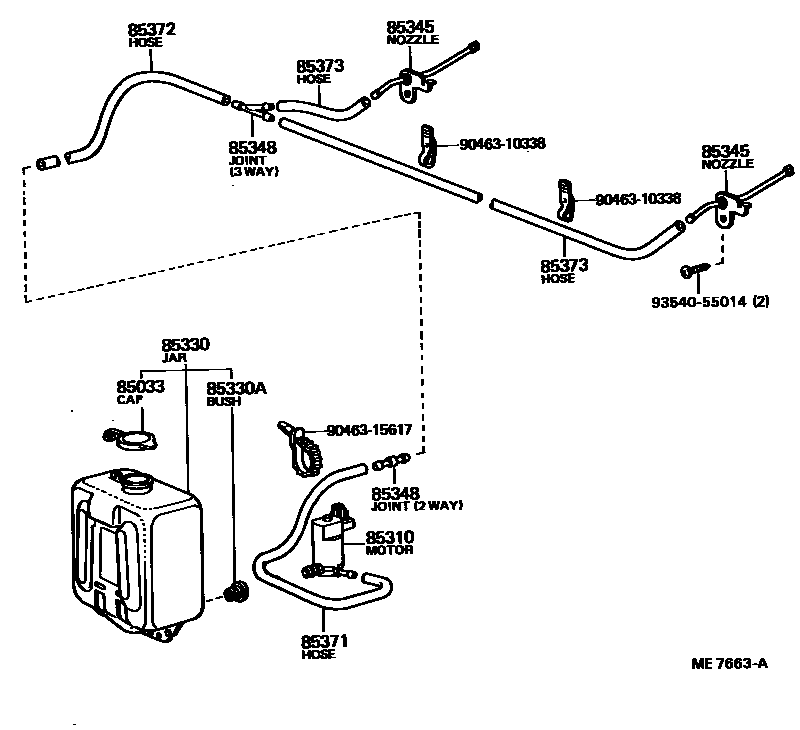

Toyota STOUT — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-30050iRK110,YK110197903-200002

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iRK110197903-198703

main85310-22080iYK110198703-200002

85330JAR ASSY, WINDSHIELD WASHER

main85330-89104iRK110197903-198804

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRK110,YK110197903-200002

85345NOZZLE, WINDSHIELD WASHER

main85341-89104×2iRK110197903-198804

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iYK110198804-200002

main85355-14010iRK110197903-198201

3 WAY

main85355-87201iRK110197903-198703

2 WAY

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iRK110197912-198804

L=1000

main90446-06236iRK110197903-197912

L=1000(*H,L=450)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iYK110198804-200002

L=1000

main90446-06056iRK110197903-197912

L=1000(*H,L=700)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33243iRK110197903-198108

L=1000(*H,L=550)

sub90099-33245

main90099-33321iRK110197903-197912

L=1000(*H,L=100)

main90446-06013iYK110198804-200002

L=1000

9046310338

main90463-10338

9046315617

main90463-15617

9354055014

main93540-55014

12 parts on this diagram · 1 diagram in section
