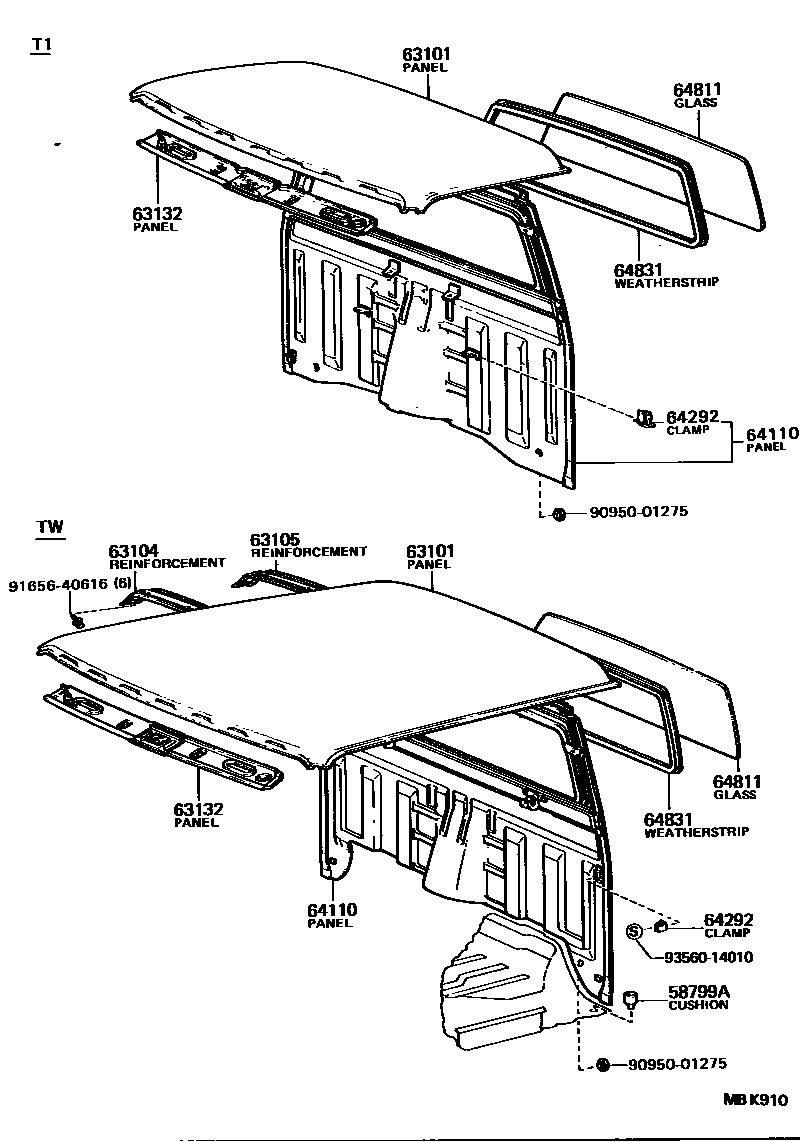

Toyota STOUT — ROOF PANEL & BACK PANEL

58799ACUSHION, JACK HANDLE

main58799-89101iYK110..TW198804-199308

63101PANEL SUB-ASSY, ROOF

main63111-89105iRK110..T1197903-198804

main63111-89107iRK110..TW197903-198804

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-89103iRK110..TW197903-198804

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-89102iRK110..TW197903-198804

63132PANEL, WINDSHIELD HEADER, INNER

main63102-89101iRK110197903-198804

64110PANEL ASSY, FRONT BODY BACK

main64101-95111iRK110..T1..(GEN,SA)197903-198804

main64101-95112iRK110..ARL197903-198609

main64101-95113iRK110..TW197903-198804

64292CLAMP, JACK HANDLE

main58706-89101×2iRK110..T1197903-198804

main64292-89102iRK110..TW197903-198804

64811GLASS, BACK WINDOW

main64811-89107iRK110..ARL197903-198609

*TEM,T=4.0

main64811-89108iRK110..GEN197903-198804

*TT,T=3.5,*TT,T=3.5

main64811-89109iYK110198804-200002

*TEM,T=3.5

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-89101iYK110198804-200002

9095001275

main90950-01275

9165640616

main91656-40616

9356014010

main93560-14010

12 parts on this diagram · 1 diagram in section
