Toyota STOUT — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-89104-03i197903-198103

GRAY,GRAY

main87810-89104-04i197903-198103

BLUE,BLUE

main87810-89104-05i197903-198103

BEIGE,BEIGE

main87810-89107-03i197903-198103

GRAY,GRAY

main87810-89107-04i197903-198103

BLUE,BLUE

main87810-89107-05i197903-198103

BEIGE,BEIGE

main87810-89110-03i198103-198108

GRAY,GRAY

main87810-89110-04i198103-198108

BLUE,BLUE

main87810-89110-05i198103-198108

BEIGE,BEIGE

main87810-89112-03i198103-198609

GRAY,GRAY

main87810-89112-04i198804-199308

BLUE,TRIM8#

main87810-89112-05i198804-199308

BEIGE,TRIM4#

main87810-89115-03i198208-198609

GRAY,GRAY

main87810-89115-04i198208-198804

BLUE,BLUE

main87810-89115-05i198804-199308

BEIGE,TRIM4#

main87810-89116-03i198208-198609

GRAY,GRAY

main87810-89116-04i198108-198208

BLUE,BLUE

main87810-89116-05i198108-198208

BEIGE,BEIGE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050i197903-198804

12V 5W,12V 5W

87831SPACER (FOR INSIDE MIRROR)

main87831-95010i197903-198804

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12020i197903-198804

main87834-89101-03i197903-198609

GRAY,GRAY

main87834-89101-04i197903-198804

BLUE,BLUE

main87834-89101-05i198804-199308

BEIGE,TRIM4#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-39165i197903-198609

FENDER BOWL TYPE

main87910-89109i197903-198106

DOOR TYPE

main87910-89111i197903-198010

DOOR TYPE

main87910-89112i198804-199308

W(DOOR MIRROR,CHROME PLATED)

main87910-89113i198010-198208

DOOR TYPE

main87910-95112i198804-199308

main87910-95116i198804-199308

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87926-95111×2i198208-198804

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-39125i197903-198609

FENDER BOWL TYPE

main87940-89112i198806-200002

DOOR TYPE

main87940-89114i197903-198010

DOOR TYPE

main87940-89115i197903-198804

DOOR TYPE(CHROME PLATED)

main87940-89116i198010-198208

DOOR TYPE

main87940-95110i198804-200002

main87940-95112i198804-199308

9015250017

main90152-50017

9017908123

main90179-08123

9321965020

main93219-65020

9323066016

main93230-66016

9323965016

main93239-65016

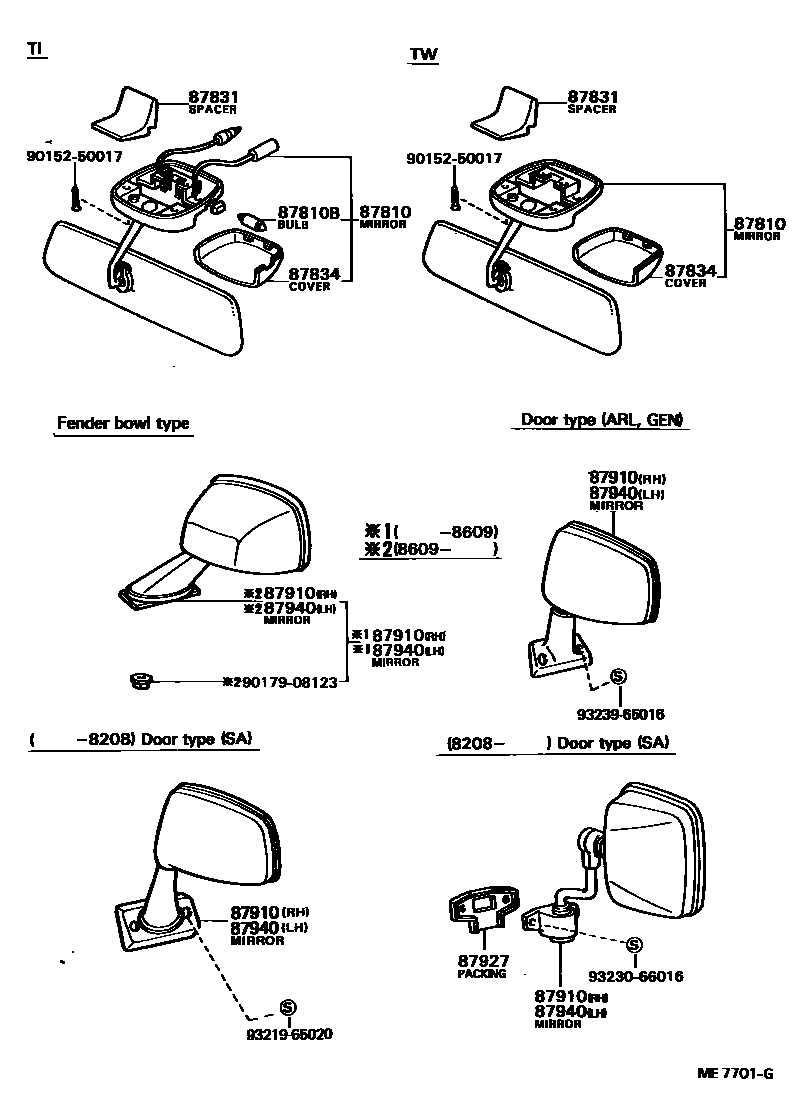

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota STOUT

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota STOUT. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, SPACER (FOR INSIDE MIRROR), COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
